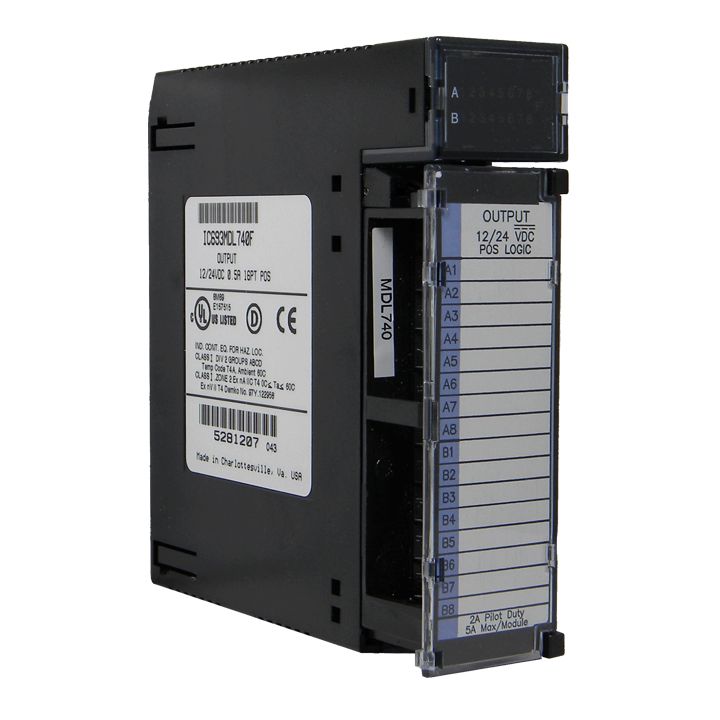

Fanuc IC693MDL740 PLC Output Module IC693MDL740E

Description:

IC693MDL740 OUTPUT MODULE 90-30 SERIES POSITIVE LOGIC 16 POINT 2 GROUPS OF OUTPUT 2 CHANNELS PER GROUP 12/24 VDC 0.5 AMPS PER POINT 2 AMPS PER COMMON SCREW TERMINALS The IC693MDL740 is a robust digital output module designed for GE's Series 90-30 PLC systems. It provides reliable and high-speed control of up to 16 digital output channels, making it ideal for interfacing with external devices such as relays, solenoids, and actuators in industrial automation applications. This module is engineered for durability and precision, offering reliable performance in demanding environments.

Technical Specifications:

• Type: Digital Output Module
• Channels: 16
• Output Voltage: 24V DC
• Output Current per Channel: 0.5 A
• Total Output Current: 8 A (max)
• Output Type: Sinking (NPN)
• Isolation: 1500V AC (Channel to Field, Channel to Logic)
• Response Time: 1 ms
• Operating Temperature: 0°C to 60°C
• Dimensions: 140mm x 120mm x 30mm
• Weight: 0.5 kg
• Protection Class: IP20
