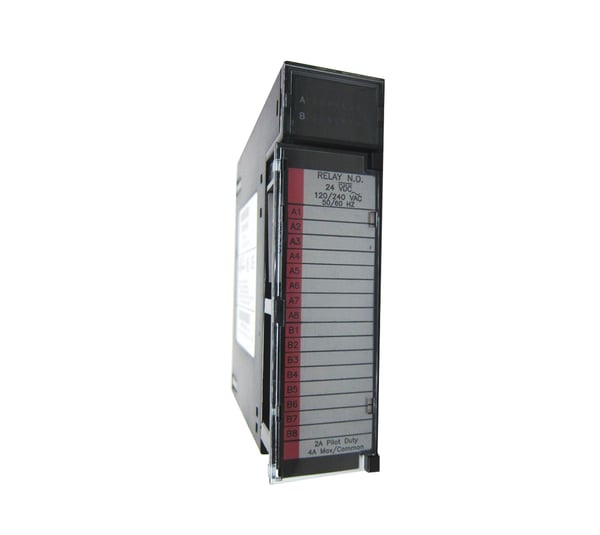

Fanuc IC693MDL940K Output Module IC693MDL940K

Description:

The Fanuc IC693MDL940K is a digital relay output module designed for the Series 90-30 PLC platform, used to control external devices such as relays, solenoids, and motor starters. It provides reliable switching of field outputs through electromechanical relay contacts. Commonly installed in industrial automation systems, it is used by maintenance teams and system integrators for output control, system expansion, and replacement of legacy PLC modules.

Applications:

This Fanuc output module is used in industrial automation systems requiring reliable switching of field devices. Typical applications include manufacturing lines, conveyor systems, packaging equipment, and process control systems where PLC-controlled outputs such as solenoids, relays, and indicators are critical to system operation.

Technical Specifications:

• Manufacturer Part Number (MPN): IC693MDL940K
• Product Type: Digital Output Module (Relay)
• Series: Series 90-30 PLC
• Number of Outputs: 16 points (normally open relays)
• Output Type: Relay (electromechanical)
• Rated Output Current: 2 A per point
• Total Output Current: Up to 4 A per common group
• Output Voltage Range:
• DC: 5–30 VDC
• AC: 5–250 VAC
• Configuration: 4 groups of 4 outputs (common terminals per group)
• Power Supply: Backplane powered (24 VDC typical)
• Function: Controls field devices (solenoids, relays, indicators)
• Mounting Type: Rack-mounted (Series 90-30 base)
• Application Class: Industrial automation / PLC output control
• Status: Discontinued / legacy module

Common Replacements:

• GE Fanuc IC693MDL940 (non-K revision)
• GE Fanuc IC693MDL930
• Emerson RX3i relay output modules (modern platform upgrade)
