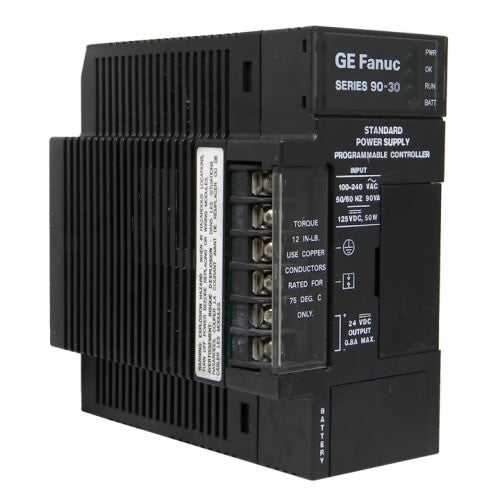

Fanuc IC693PWR321 Power Supply IC693PWR321

The GE Fanuc IC693PWR321 is a 30-watt power supply module designed for use with the Series 90-30 PLC system. It provides regulated 5VDC and 24VDC outputs to support CPUs and I/O modules and accepts both AC and DC input power. The module is installed in the leftmost slot of the baseplate and features diagnostic LEDs, smart fuse protection, and an integrated RS-485 serial port. It is ideal for industrial control systems requiring flexible power options and reliable operation.

TECHNICAL SPECIFICATIONS:

Manufacturer: GE Fanuc
Model Number: IC693PWR321
Series: Series 90-30
Input Voltage Range: 85–264 VAC or 100–300 VDC
Input Power: 90 VA (AC), 50 W (DC)
Output Voltage: +5 VDC, +24 VDC (relay), +24 VDC (isolated)
Output Power: 30 W total (combined)
Inrush Current: 4 A peak (max 250 ms)
Hold-up Time: ≥ 20 ms
Mounting: Leftmost slot of 90-30 baseplate
Communication: RS-485 serial port
Diagnostics: LED indicators for status and fault
Protection: Overcurrent and short circuit protection via smart fuse
Cooling: Passive (no fan)
Terminal Connections: 6-terminal user connector
Certifications: UL, CE, Class I Division 2
Dimensions (H x W x D): Approx. standard Series 90-30 module size
Weight: Approx. 1.5 lb (0.68 kg)
