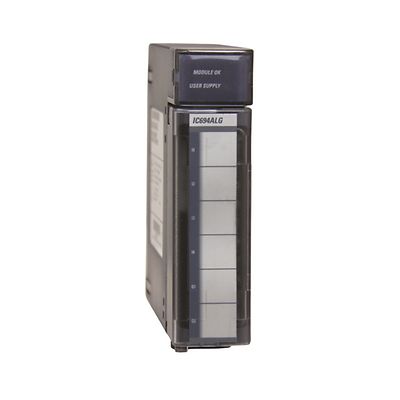

Fanuc IC694ALG392 Analog Output Module IC694ALG392

Description:

The Fanuc IC694ALG392 Analog Output Module is used in RX3i PACSystems PLC platforms for analog signal output and process control. Commonly installed in manufacturing systems, process control environments, and industrial automation panels requiring precise analog output signals. Maintenance teams, OEMs, and system integrators use this module for system expansion, signal interfacing, and replacement of existing analog output modules.

Applications:

The Fanuc IC694ALG392 Analog Output Module is used in industrial automation systems to provide accurate analog output signals for controlling field devices. It is widely applied in process industries, production lines, and machine automation where outputs such as voltage and current signals are required to drive actuators, control valves, and variable speed drives, ensuring precise and stable system performance.

Technical Specifications:

• Manufacturer: GE Fanuc
• Part Number: IC694ALG392
• Product Type: Analog Output Module
• System Compatibility: RX3i PACSystems
• Output Channels: 8 single-ended channels
• Output Signal Types: Voltage and current outputs
• Voltage Range: 0–10 V, ±10 V
• Current Range: 0–20 mA, 4–20 mA
• Resolution: 15–16 bit configurable
• Update Rate: Approx. 8 ms (all channels)
• Supply Voltage: 24 V DC external supply
• Isolation: 250 VAC continuous (field to backplane)
• Power Consumption: 110 mA (5 V backplane), 315 mA (24 V external)
• Mounting: Rack-mounted in RX3i system
• Weight: Approx. 0.3 kg

Common Replacements:

• Fanuc IC694ALG442
• Fanuc IC694ALG391
• Fanuc IC694ALG221
