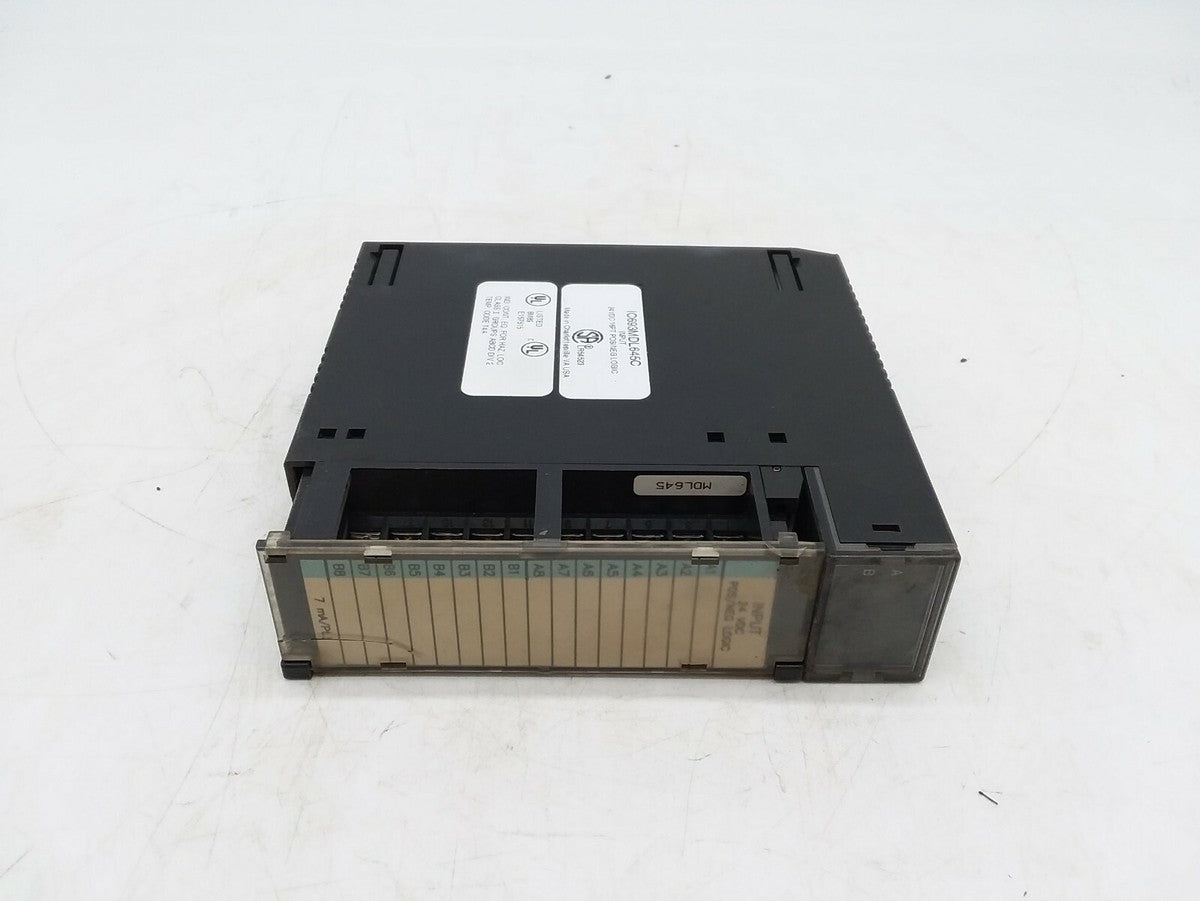

Fanuc Input Module IC693MDL645C

Description:

The FANUC IC693MDL645C Input Module is used in industrial automation systems for digital input signal processing within GE Fanuc Series 90-30 PLC platforms. Commonly installed in PLC racks, control panels, and automated manufacturing systems. Maintenance teams, OEMs, and system integrators use this part for system expansion, troubleshooting, and replacement of faulty input modules.

Applications:

The FANUC IC693MDL645C is widely used in industrial environments requiring reliable monitoring of discrete input signals from field devices. It is commonly integrated into GE Fanuc Series 90-30 PLC systems in manufacturing lines, packaging machines, and material handling systems where signals from sensors, switches, and pushbuttons must be accurately processed for control operations.

Technical Specifications:

• Manufacturer Part Number (MPN): IC693MDL645C
• Brand: FANUC (GE Fanuc)
• Product Type: Digital Input Module
• Series: Series 90-30
• Number of Inputs: 16 points
• Input Voltage: 24V DC
• Input Type: Sink/Source compatible (depending on wiring)
• Input Current: Approx. 7 mA per point
• Isolation: Optical isolation
• Response Time: Approx. 5 ms
• Mounting Type: Rack-mounted (Series 90-30 baseplate)
• Terminal Type: Screw terminals
• Operating Temperature: 0°C to +60°C
• Protection Rating: IP20
• Compliance Standards: CE, UL

Common Replacements:

• GE IC693MDL646 Input Module
• GE IC693MDL645 Input Module
• Omron CJ1W-ID211 Input Module
