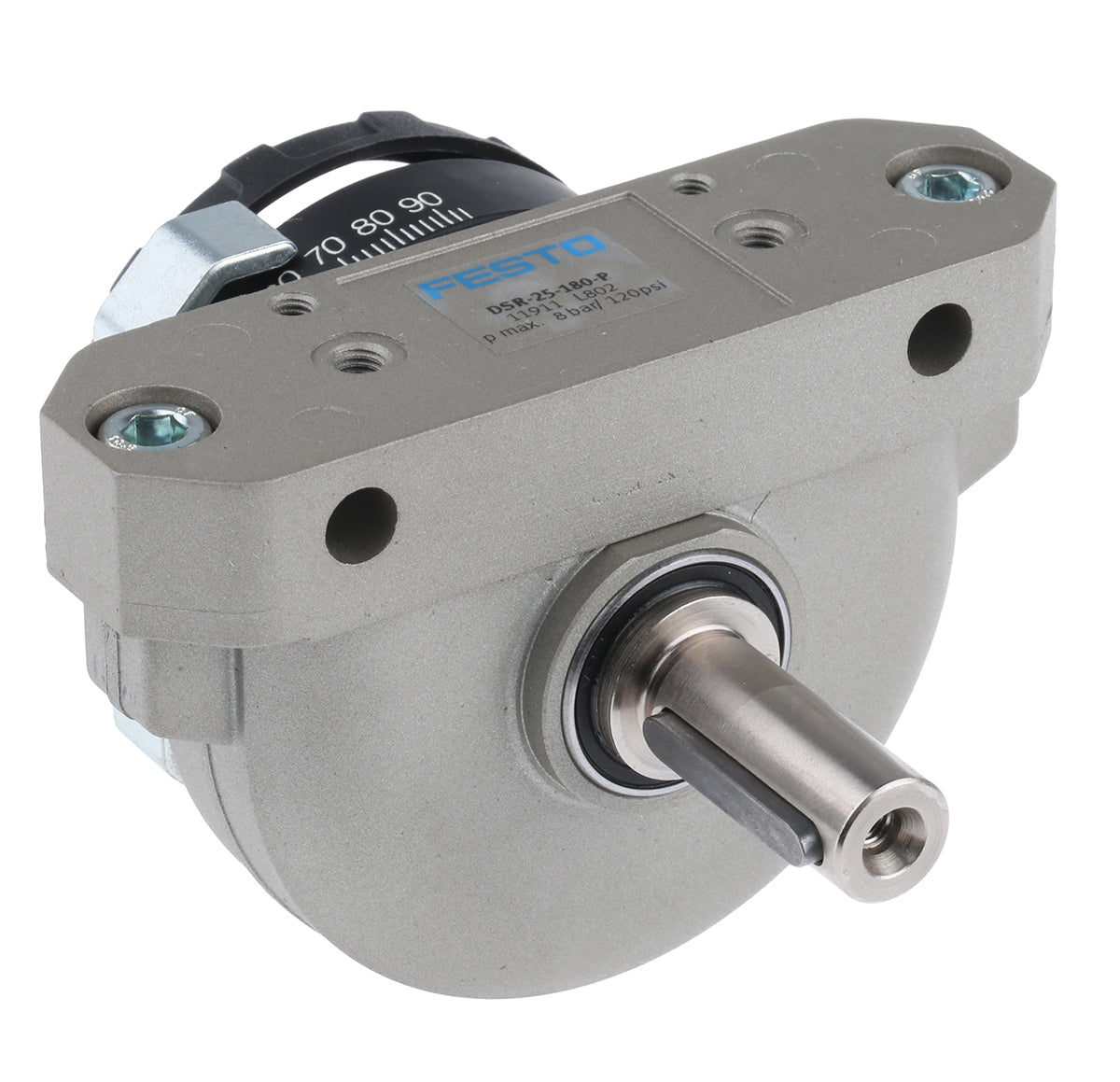

Festo DSR-25-180-P 11911 Pneumatic Rotary Drive DSR25180P

Description:

DSR25180P QUARTER TURN ACTUATOR DSR SERIES DOUBLE-ACTING ROTARY VANE 1.5-8 BAR OPERATING PRESSURE 5 NM TORQUE AT 6 BAR THROUGH-HOLE MOUNTING M5 PNEUMATIC CONNECTION 11911 The Festo DSR-25-180-P (part number 11911) is a pneumatic rotary drive designed for applications requiring precise rotational motion. This compact rotary actuator provides up to 180 degrees of adjustable rotation, making it ideal for automated systems in industries such as packaging, assembly, and material handling. The DSR series ensures reliable performance with high torque output, offering smooth and controlled motion in repetitive operations. Built for durability, this pneumatic rotary drive can withstand demanding industrial environments while delivering accurate positioning and speed control.

Technical Specifications:

• Model: DSR-25-180-P
• Part Number: 11911
• Type: Pneumatic Rotary Drive
• Rotation Angle: 180° (adjustable)
• Torque Output: Up to 2.2 Nm (at 6 bar)
• Operating Pressure: 2 to 8 bar
• Medium: Compressed air, filtered, and lubricated or non-lubricated
• Connection: G1/8 (pneumatic connection)
• Swivel Time for 180°: Adjustable depending on air flow and pressure
• Temperature Range: -10°C to +60°C (14°F to 140°F)
• Weight: Approx. 0.6 kg (1.32 lbs)
• Mounting Type: Can be mounted in various orientations (horizontal or vertical)
• Materials:
• Housing: Anodized aluminum
• Seals: NBR (nitrile rubber) for leak-free operation
• Adjustable Stops: For precise control over rotational range
• Position Sensing: Optional magnetic sensors can be added for position feedback
• Features:
• Adjustable Rotation: Allows for fine-tuning of the rotation angle between 0° and 180°.
• High Torque: Capable of delivering strong torque for various industrial automation tasks.
• Durable Construction: Built with robust materials to handle harsh environments and extended use.
• Compact Design: Space-saving, making it easy to integrate into existing systems.
• Optional Sensors: Can be equipped with position sensors for monitoring and precise control.
