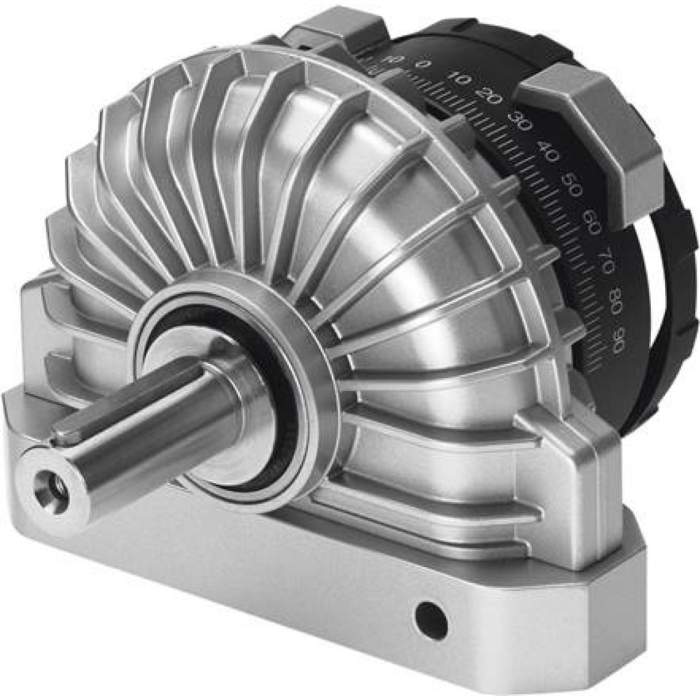

Festo DSR-40-180-P 13467 Rotary Cylinder DSR40180P

Description:

The Festo DSR-40-180-P 13467 Rotary Cylinder is used in pneumatic motion control systems for rotary actuation and angular positioning. Commonly installed in automated machinery, assembly systems, packaging equipment, and material handling processes. Maintenance teams, OEMs, and system integrators use this actuator for precise rotary motion control, system automation, replacement, and reliable operation in pneumatic systems.

Applications:

The Festo DSR-40-180-P rotary cylinder is used in industrial environments such as manufacturing lines, robotic handling systems, packaging machines, and indexing mechanisms to provide controlled rotary movement, enabling positioning, clamping, and directional changes using compressed air-driven actuation.

Technical Specifications:

• Manufacturer: Festo
• Model / Part Number: DSR-40-180-P / 13467
• Product Type: Pneumatic Rotary Actuator (Semi-rotary drive)
• Series: DSR
• Operation: Double-acting rotary vane
• Rotation Angle: 0° to 180° adjustable
• Theoretical Torque: 20 Nm at 6 bar
• Operating Pressure: 1.5 to 8 bar
• Swivel Frequency: Up to 3 Hz
• Shaft Diameter: 20 mm
• Pneumatic Connection: G1/4
• Mounting: Through-hole mounting
• Cushioning: Elastic cushioning at both ends
• Material: Die-cast zinc housing, steel shaft
• Operating Temperature: -10°C to +60°C
• Operating Medium: Compressed air (ISO 8573-1 compliant)

Common Replacements:

• Festo DSRL-40-180-P-FW
• Festo DSR-32-180-P
• Festo DRVS-40-180
