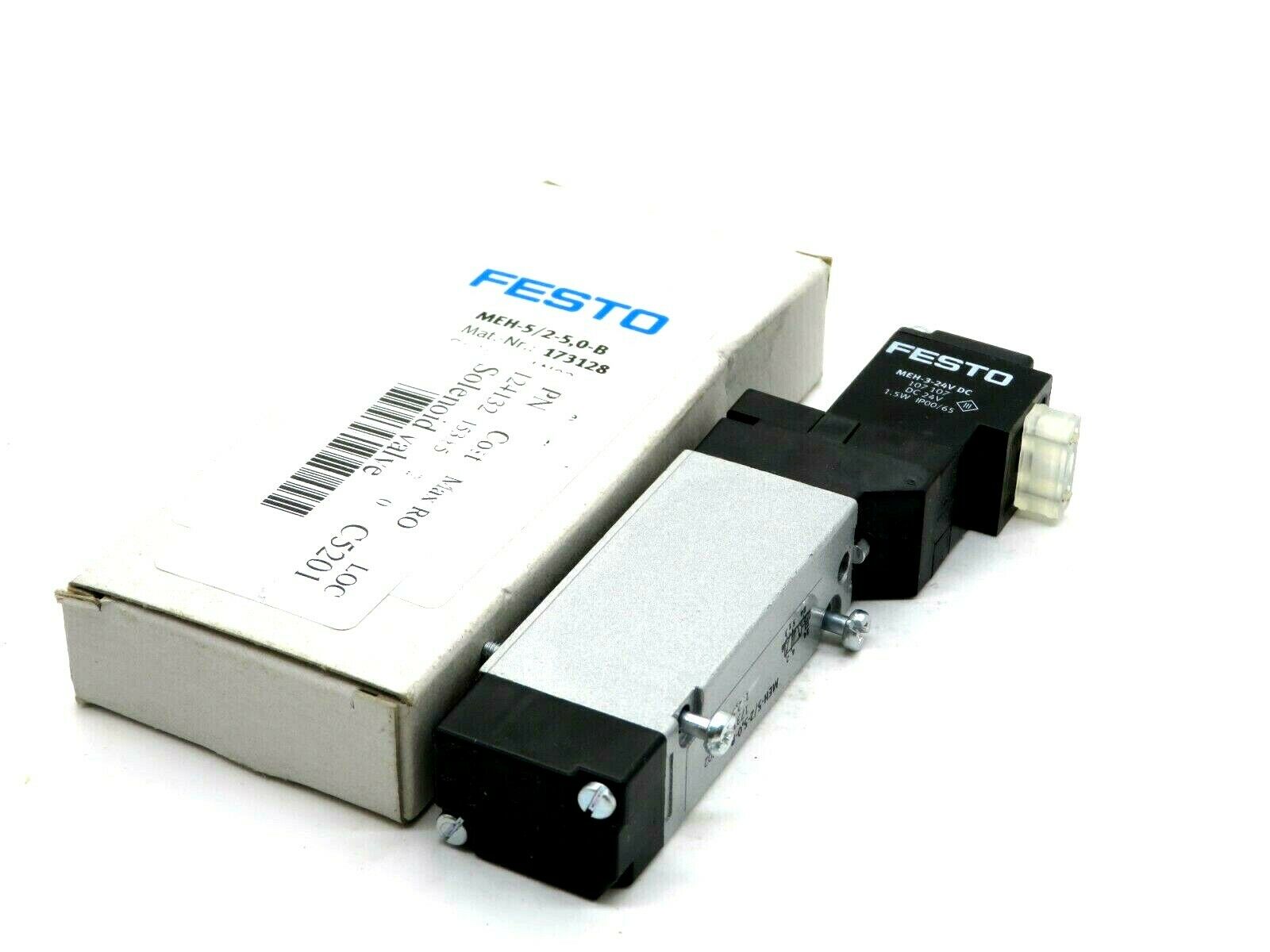

Festo MEH-5/2-5,0-B 173128 SOLENOID VALVE PLC MODULE

Description:

The Festo MEH-5/2-5,0-B 173128 Solenoid Valve is used in pneumatic control systems for directional control of compressed air flow. Commonly installed in automated machinery, pneumatic control panels, assembly lines, and material handling systems. Maintenance teams, OEMs, and system integrators use this valve for air flow control, system automation, replacement, and reliable operation in pneumatic circuits.

Applications:

The Festo MEH-5/2-5,0-B solenoid valve is used in industrial environments such as manufacturing plants, packaging systems, and automation lines to control double-acting pneumatic cylinders and actuators by directing compressed air flow, enabling precise motion control, switching, and sequencing of pneumatic operations.

Technical Specifications:

• Manufacturer: Festo
• Model / Part Number: MEH-5/2-5,0-B / 173128
• Product Type: Pneumatic Solenoid Valve (5/2-way)
• Series: MEH
• Valve Function: 5/2 monostable
• Actuation Type: كهربical (solenoid operated)
• Operating Voltage: 24 V DC
• Flow Rate: 700 l/min
• Operating Pressure: 2.5 to 8 bar
• Nominal Size: 5 mm
• Design: Piston slide valve
• Reset Method: Mechanical spring return
• Mounting: Sub-base mounting
• Protection Rating: IP65
• Operating Medium: Compressed air (ISO 8573-1 compliant)
• Operating Temperature: -5°C to +50°C
• Body Material: Die-cast aluminum

Common Replacements:

• Festo JMEH-5/2-5,0-B
• Festo MFH-5-1/8-B
• Festo CPE14-M1H-5/2
