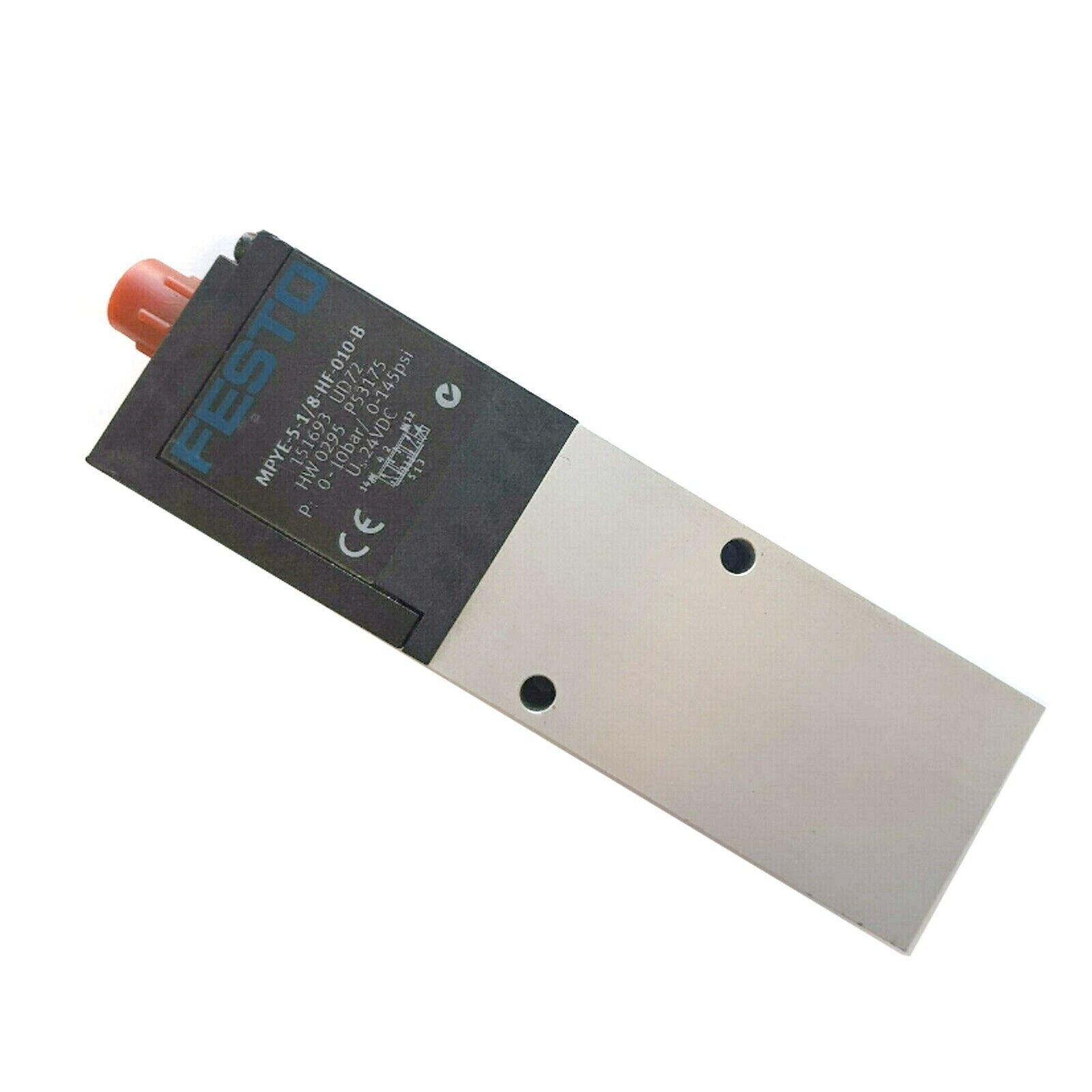

Festo MPYE-5-18-HF-010B 151693 Proportional Directional Control Valve

Description:

MPYE518HF010B PROPORTIONAL DIRECTIONAL CONTROL VALVE VALVE FUNCTION: 5/3 CLOSED G1/8" PORT SIZE 0-10 BAR (0-145 PSI) 24 VDC HIGH FLOW 1/8" THREAD 4-PIN M12 CONNECTION IP65 (151693) The Festo MPYE-5-18-HF-010B (part number 151693) is a proportional directional control valve designed to offer precise control of pneumatic flow and direction. This valve is part of Festo’s MPYE series, known for its reliability and accuracy in handling complex pneumatic systems. The MPYE-5-18-HF-010B enables fine-tuned regulation of pressure and flow, making it ideal for applications that require variable control and high performance.

Technical Specifications:

• Model: MPYE-5-18-HF-010B
• Part Number: 151693
• Type: Proportional Directional Control Valve
• Port Size: G 1/4
• Number of Ports: 5
• Number of Positions: 2
• Operating Voltage: 24 VDC
• Flow Rate: Up to 400 L/min
• Pressure Range: 0 to 10 bar
• Temperature Range: -5°C to +50°C (23°F to 122°F)
• Control Type: Proportional control for precise adjustment of flow and pressure
• Material:
• Body: Anodized aluminum or high-quality plastic
• Seals: NBR (Nitrile rubber)
• Weight: Approx. 0.5 kg (1.1 lbs)
• Features:
• Proportional Control: Allows for precise adjustment of flow and pressure, enabling fine-tuned control over pneumatic operations.
• High Flow Rate: Capable of handling high flow rates to accommodate demanding applications.
• Durable Construction: Built from robust materials for long-term reliability and performance in industrial environments.
• Compact Design: Space-efficient design suitable for integration into various pneumatic systems.
• Versatile Applications: Ideal for applications requiring precise control of pneumatic flow, including automation, material handling, and assembly.
