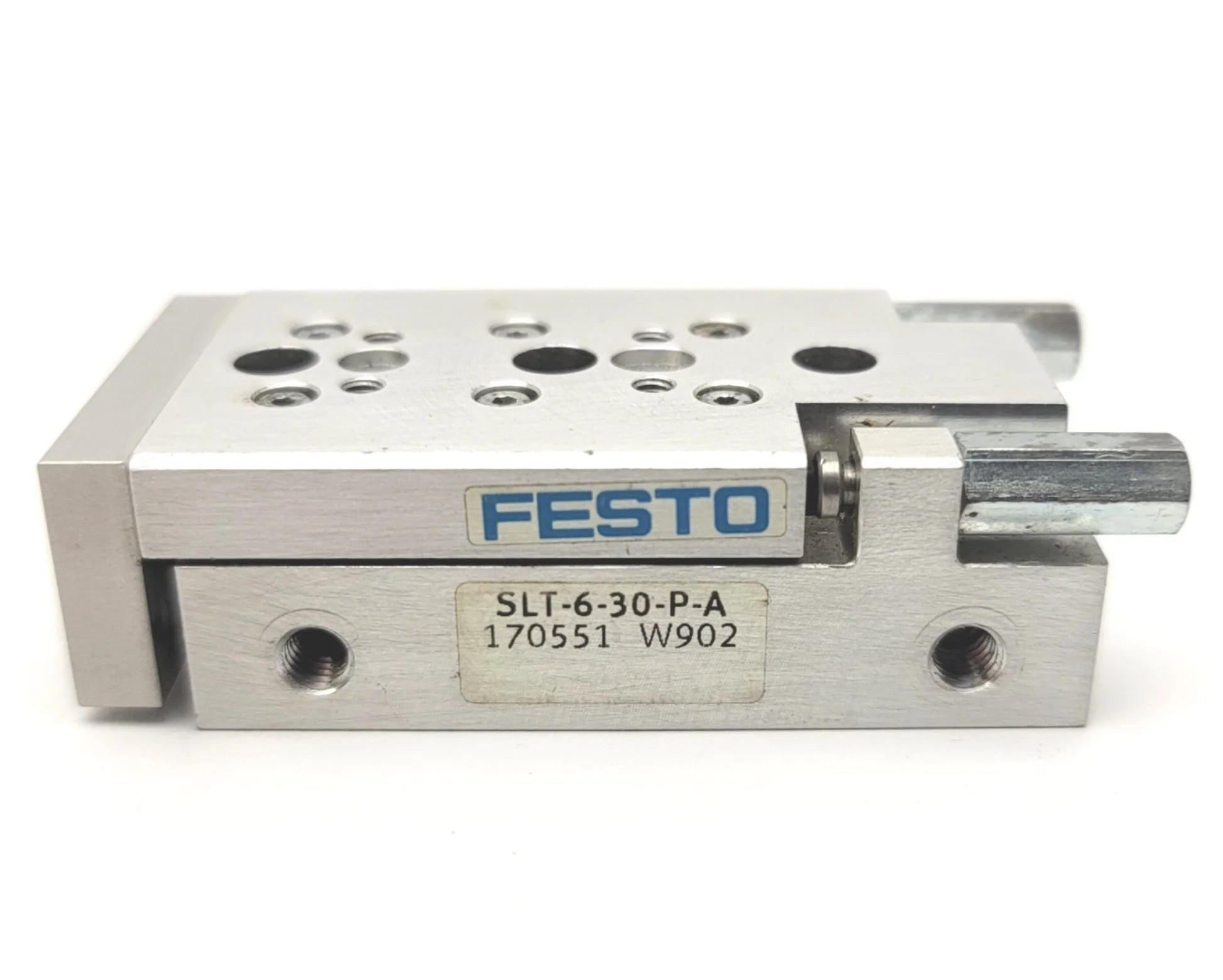

Festo SLT-6-30-P-A 170551 Mini Slide Cylinder SLT630PA

Description:

The Festo SLT-6-30-P-A 170551 Mini Slide Cylinder is used in pneumatic motion control systems for precise linear positioning and guided movement. Commonly installed in assembly machines, pick-and-place systems, electronics manufacturing, and precision automation equipment. Maintenance teams, OEMs, and system integrators use this actuator for compact motion control, system automation, replacement, and high-precision positioning tasks.

Applications:

The Festo SLT-6-30-P-A mini slide cylinder is used in industrial environments such as automated assembly lines, semiconductor equipment, packaging systems, and small-part handling applications to provide accurate linear motion with guided stability, enabling precise positioning, clamping, and transport of components in compact automation setups.

Technical Specifications:

• Manufacturer: Festo
• Model / Part Number: SLT-6-30-P-A / 170551
• Product Type: Mini Slide Cylinder (Pneumatic Linear Actuator)
• Series: SLT
• Cylinder Bore: 6 mm
• Stroke Length: 30 mm
• Operation: Double-acting pneumatic drive
• Guide Type: Ball-bearing cage guide
• Maximum Force: Up to 140 N (Fy/Fz)
• Operating Pressure: 1.5 to 10 bar
• Cushioning: Elastic cushioning at both ends
• Mounting: Through-hole mounting
• Pneumatic Connection: M5 port
• Material: Aluminum housing with high-alloy steel piston rod
• Operating Temperature: -20°C to +60°C
• Position Detection: Compatible with proximity sensors

Common Replacements:

• Festo SLS-6-30-P-A
• Festo DGST-6-30-PA
• Festo DGSL-10-30-P-A
