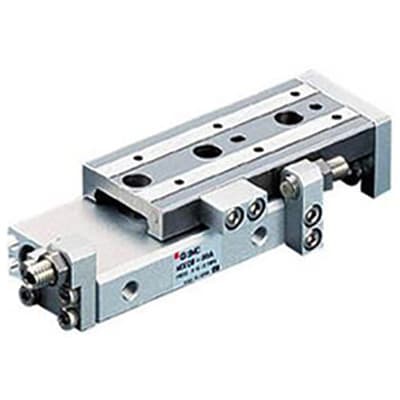

SMC MXQ12-30A Precision Slide Table Actuator MXQ1230A

Description:

The SMC MXQ12-30A is a precision slide table designed for applications requiring accurate linear motion and compact form factor. With a 12 mm bore and 30 mm stroke, it features a dual-rod, linear guide system that ensures high rigidity and parallelism during motion. Ideal for pick-and-place, pushing, or stopping operations in confined spaces, the MXQ series offers smooth, precise movement and high load capacity in both horizontal and vertical orientations.

TECHNICAL SPECIFICATIONS:
Manufacturer: SMC Corporation
Model Number: MXQ12-30A
Type: Precision Air Slide Table
Bore Size: 12 mm
Stroke Length: 30 mm
Operating Pressure Range: 0.1 to 0.7 MPa
Fluid: Air (filtered, non-lubricated)
Piston Speed Range: 30 to 500 mm/s
Cushion: Rubber bumpers
Guide Type: Ball bushing bearing
Port Size: M5
Mounting: Body tapped or through-hole
Repeatability: ±0.01 mm
Operating Temperature: 0°C to 60°C
Dimensions: Approx. 86 mm (L) x 30 mm (W) x 24 mm (H)
Weight: Approx. 230 g
