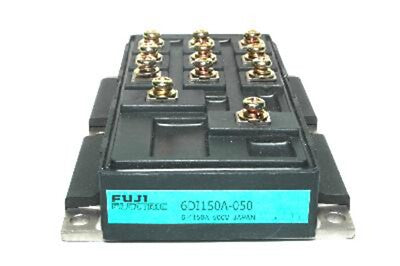

Fuji 6DI150A-050 IGBT Module 6DI150A050

Description:

6DI150A050 DISCONTINUED BY MANUFACTURER TRANSISTOR MOD The Fuji 6DI150A-050 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module designed for efficient power switching and control in various industrial applications. This module is engineered to deliver reliable and stable performance in demanding environments, making it suitable for use in motor drives, inverters, and other power electronics systems.

Technical Specifications:

• Model: 6DI150A-050
• Type: IGBT Module
• Voltage Rating: 600 V (DC Link voltage)
• Current Rating: 150 A (Continuous)
• Package Type: Typically available in a standard power module package
• Configuration: IGBT module with integrated diodes for high-efficiency switching
• Thermal Resistance: Designed for effective heat dissipation to ensure stable operation
• Cooling Method: Requires heat sinking or external cooling to manage temperature
• Mounting Type: Usually mounted on a heatsink or within a power module chassis
• Features:
• High Efficiency: Provides efficient switching with minimal power losses, ideal for high-power applications.
• Robust Construction: Built to endure high-stress conditions and harsh industrial environments.
• Stable Performance: Ensures reliable and consistent operation in motor drives and other power systems.
• Effective Thermal Management: Features designed to handle thermal loads and maintain performance.
