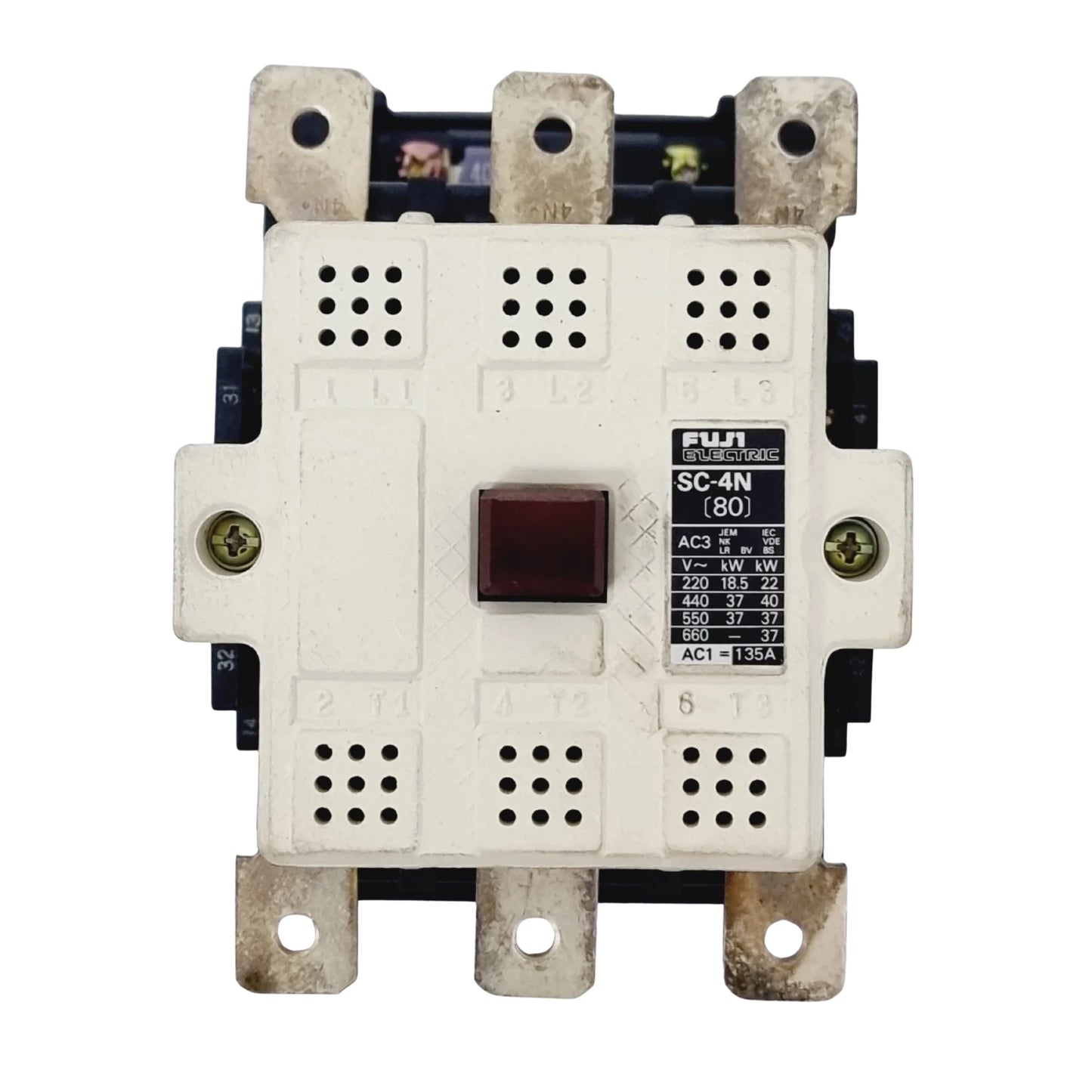

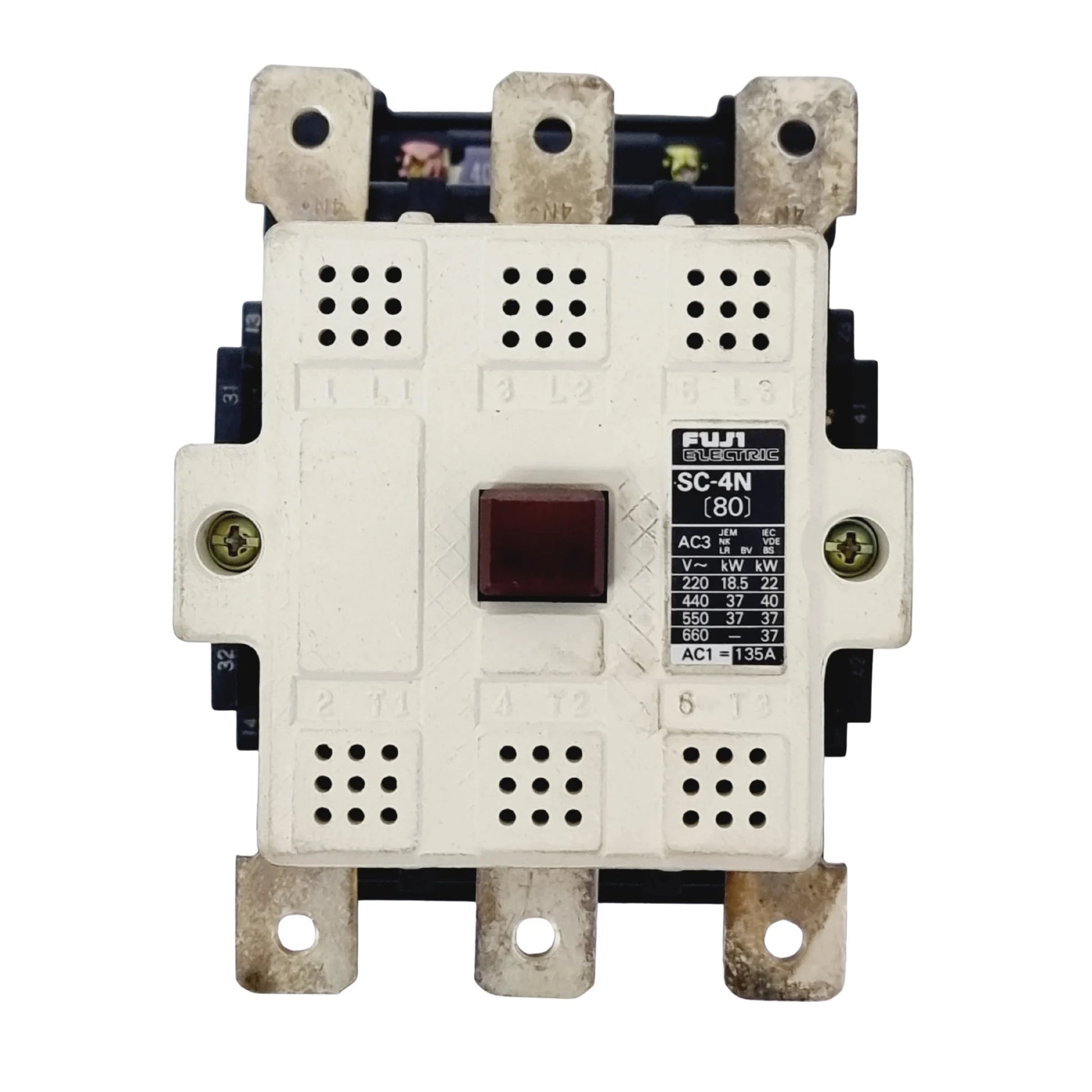

Fuji SC-4N Magnetic Contactor 110V SC4N

Description:

The Fuji SC-4N Magnetic Contactor is a highly durable and reliable contactor designed for controlling and switching electrical circuits in industrial applications. Operating at 110V AC, it is used to control electric motors, lighting, heating, and other equipment. With a rugged design, it ensures smooth operation in harsh environments, providing excellent performance in both normal and heavy-duty applications. The SC-4N is well-suited for motor starting and controlling electrical power in automation systems.

Technical Specifications:

• Model: SC-4N
• Type: Magnetic Contactor
• Rated Coil Voltage: 110V AC
• Current Rating: 200A (AC-3 load)
• Number of Poles: 3 (Three-pole)
• Main Contacts: 3NO (Normally Open)
• Coil Power Consumption: 50-60 Hz, approximately 9 VA
• Operating Frequency: Up to 1200 operations/hour
• Electrical Durability: 1 million operations
• Mechanical Durability: 10 million operations
• Mounting: DIN rail or panel mount
• Standards: Complies with IEC 60947, JIS C8201-4-1 standards
• Dimensions: 140mm (H) x 100mm (W) x 150mm (D)
• Features:
• High Current Capacity: Supports up to 200A for motor and heavy electrical load control.
• Durable Construction: Designed for long-lasting performance in demanding industrial environments.
• Wide Application: Suitable for controlling motors, lighting circuits, heating, and power distribution systems.
• Coil Voltage: 110V AC coil ensures fast and efficient contactor operation.
• Easy Installation: Flexible mounting options with DIN rail and panel mounting capabilities.
