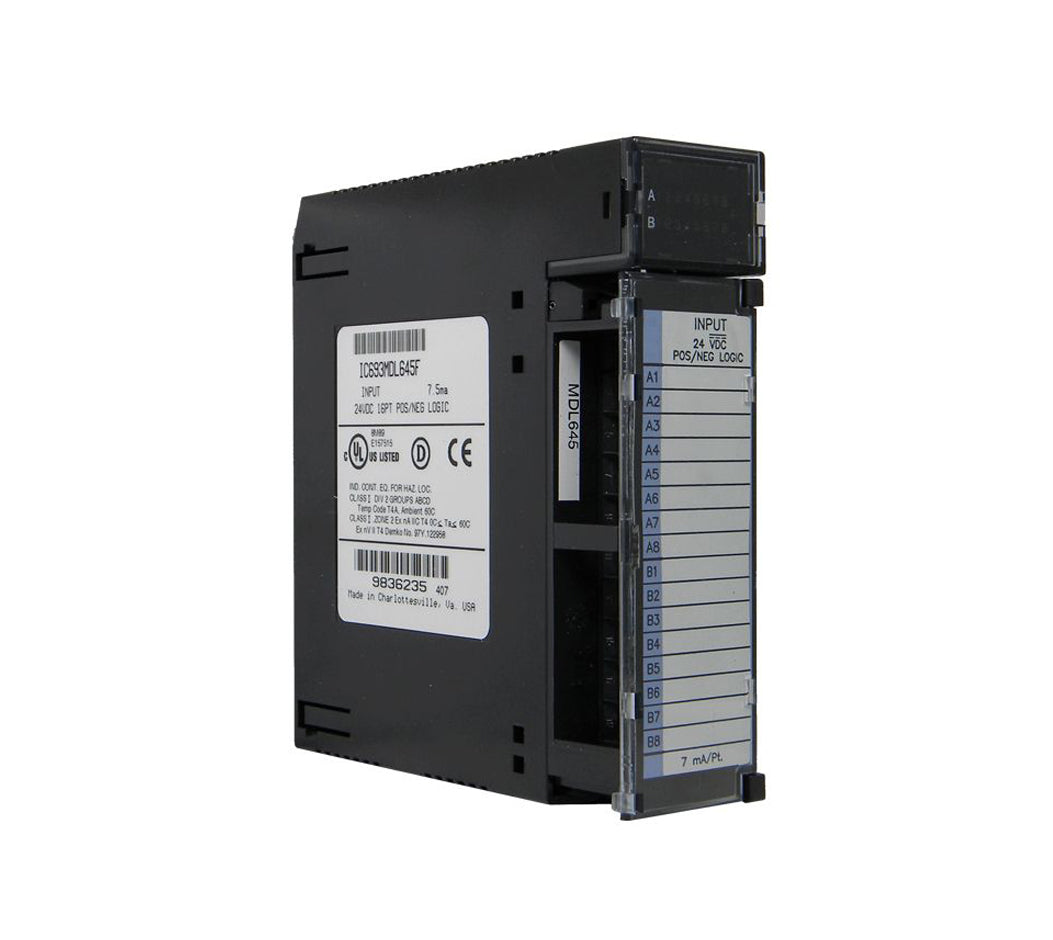

GE Fanuc IC693MDL645 24vdc Input Module 16pt

Description:

The GE Fanuc IC693MDL645 digital input module is used in industrial automation systems to provide reliable 24VDC signal input processing for Series 90-30 PLC platforms. Commonly installed in GE Fanuc 90-30 racks, it enables the PLC to receive signals from field devices such as pushbuttons, limit switches, and proximity sensors using either positive or negative logic. Maintenance teams and system integrators use this module for system expansion, signal acquisition, control system upgrades, and replacement of legacy input modules.

Applications:

The GE Fanuc IC693MDL645 is commonly used in manufacturing systems, material handling, packaging equipment, and process control environments where reliable discrete input monitoring is required. It is ideal for interfacing field devices with PLC systems for real-time control and diagnostics.

Technical Specifications:

• Manufacturer Part Number (MPN): IC693MDL645
• Product Type: Digital Input Module
• Series: GE Fanuc Series 90-30
• Input Type: Positive / Negative Logic (configurable)
• Number of Input Channels: 16 (single group)
• Input Voltage: 24 VDC
• Input Voltage Range: 0 to 30 VDC
• Input Current: ~7 mA per channel
• ON State Voltage: 11.5 to 30 VDC
• OFF State Voltage: 0 to 5 VDC
• Response Time: ~7 ms ON / OFF
• Isolation: 1500V between field and logic
• LED Indicators: 16 status LEDs (one per input)
• Mounting Type: Series 90-30 rack-mounted module
• Power Supply: Backplane powered (5V / 24V)
• Application Environment: Industrial automation and PLC control systems

Common Replacements:

• GE Fanuc IC693MDL646 Input Module
• GE Fanuc IC693MDL647 Input Module
• Emerson RX3i Digital Input Modules
