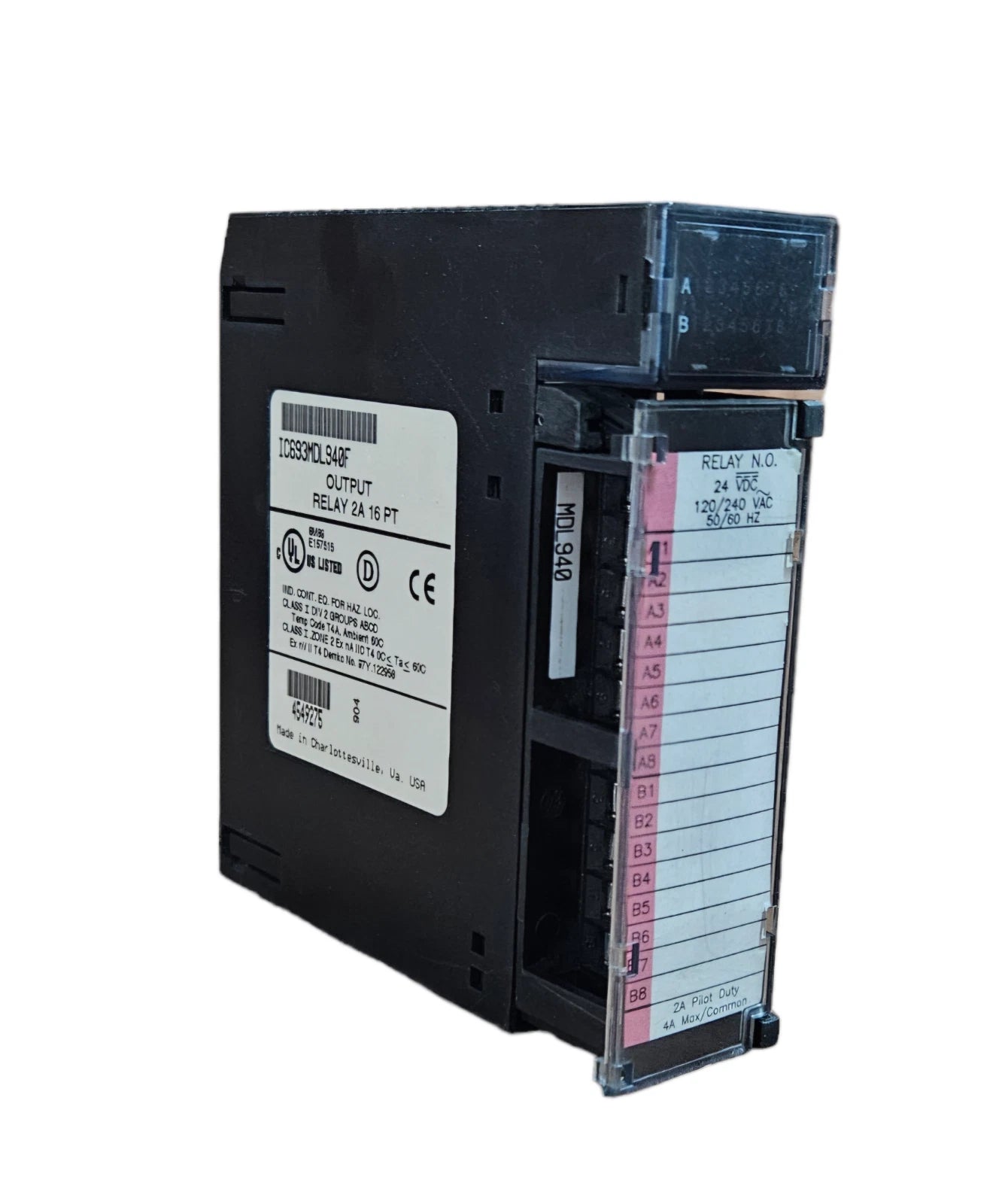

GE FANUC IC693MDL940F RELAY OUTPUT MODULE IC693MDL940F

Description:

The GE Fanuc IC693MDL940F is a relay output module designed for the Series 90-30 PLC platform, used to control field devices such as relays, solenoids, motor starters, and indicator lights. It provides isolated relay outputs, allowing it to switch both AC and DC loads. Commonly installed in industrial automation systems, it is used by maintenance teams and system integrators for machine control, I/O expansion, and replacement of legacy output modules.

Applications:

The GE Fanuc IC693MDL940F output module is used in industrial automation systems requiring reliable switching of field devices. Typical applications include manufacturing lines, process control systems, packaging equipment, and machine automation where consistent output control of relays, motors, and actuators is critical to system performance.

Technical Specifications:

• Manufacturer Part Number (MPN): IC693MDL940F
• Product Type: Relay Output Module
• Series: GE Fanuc Series 90-30
• Number of Outputs: 16 outputs (4 groups of 4)
• Output Type: Relay (normally open)
• Max Load Current per Output: 2 A
• Max Load Current per Common: 4 A
• Voltage Ratings:
• 5–30 VDC
• 5–250 VAC (50/60 Hz)
• Minimum Load Current: 10 mA
• Inrush Current: Up to 5 A
• Response Time: ~15 ms (on/off)
• Isolation: Grouped output isolation
• Power Supply: Backplane powered (24 VDC nominal)
• Indicators: LED status indicators per output
• Mounting: Fits any slot in 90-30 baseplate
• Status: Discontinued / legacy module

Common Replacements:

• GE Fanuc IC693MDL930
• GE Fanuc IC694MDL940
• Emerson RX3i equivalent output modules
