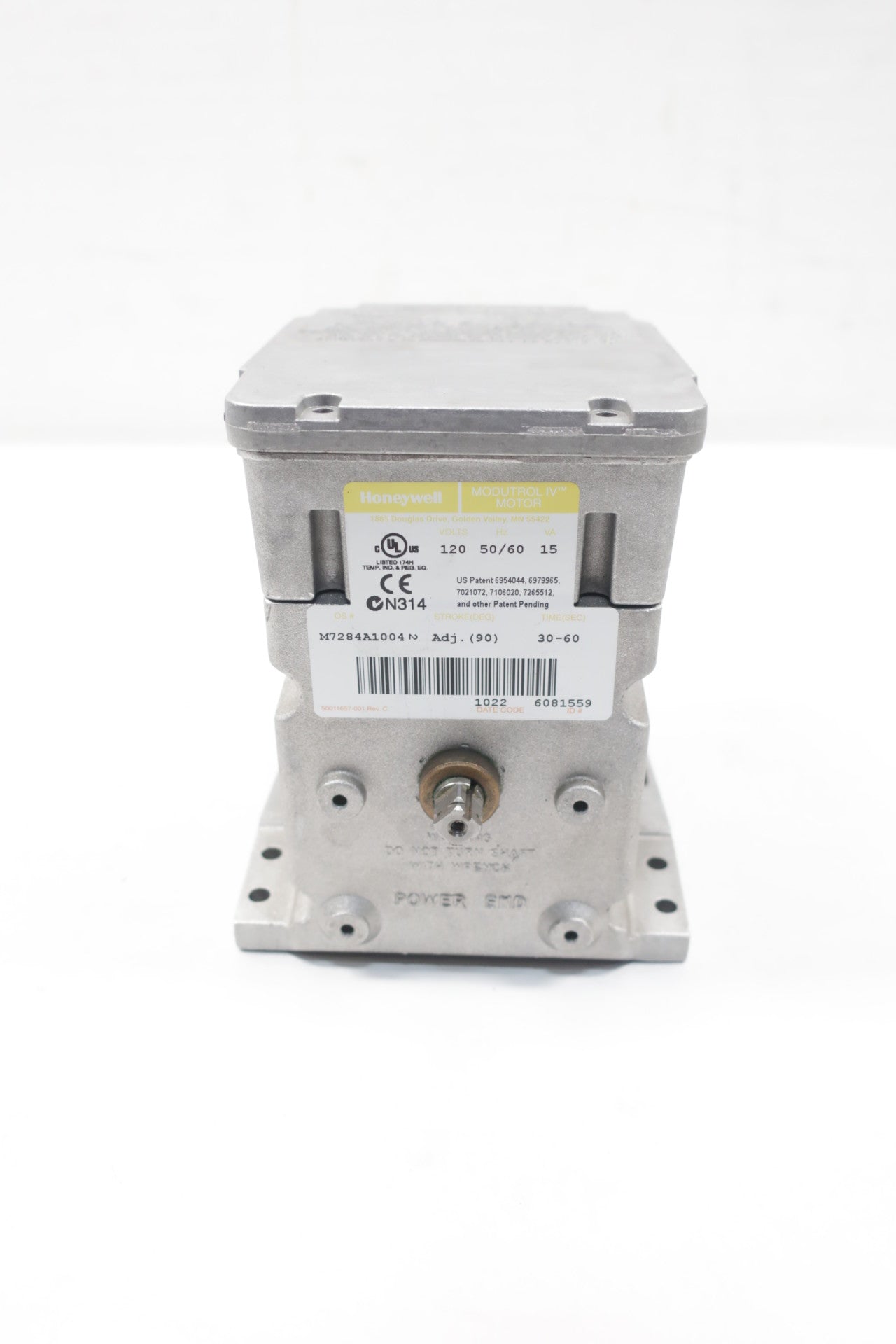

Honeywell M7284A1004 Damper Actuators

DESCRIPTION
The Honeywell M7284A1004 is a Modutrol IV Series motor designed for modulating control of dampers and valves in HVAC systems. This non-spring return motor operates on 24V AC power and delivers up to 150 lb-in of torque. It accepts modulating control signals (2–10 VDC or 4–20 mA with optional adapter) and is commonly used in commercial and industrial heating, cooling, and ventilation systems for precise airflow and temperature control.

TECHNICAL SPECIFICATIONS
Model: M7284A1004
Series: Modutrol IV
Motor Type: Non-Spring Return
Control Signal: Modulating (Voltage or Current with adapter)
Voltage: 24V AC
Frequency: 50/60 Hz
Torque: 150 lb-in (17 Nm)
Rotation: 90° or adjustable
Mounting: Direct coupling or with crank arm and linkage
Ambient Operating Temperature: -40°F to 150°F (-40°C to 65°C)
Timing: 30 seconds for 90° stroke
Electrical Connections: Screw terminals
Enclosure: NEMA 2 (for indoor use)
