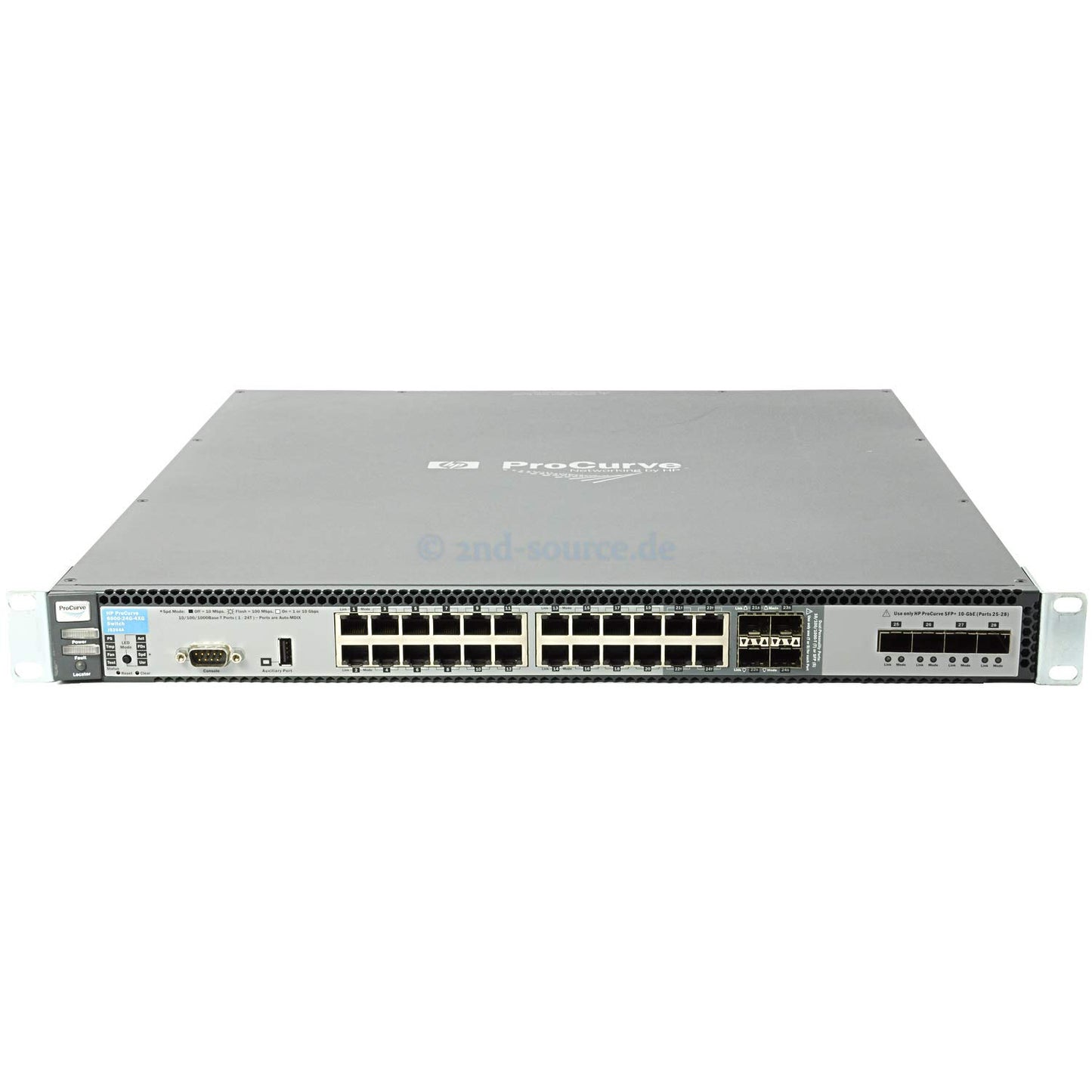

HP J9264A ProCurve 6600-24G-4XG 20xGbe 4 SFP+ 10Gbe Switch HP

Description:

The HP ProCurve J9264A is a 6600-24G-4XG managed Layer 3 switch designed for data center and enterprise network environments. It provides high-performance Gigabit access ports with integrated 10GbE uplinks, enabling fast data transfer and scalable network architecture. Built for reliability and flexibility, it supports advanced routing, security, and stacking features, making it suitable for core or aggregation layer deployments.

Applications:

The HP ProCurve J9264A switch is used in enterprise and industrial networking environments requiring high throughput and reliable switching. Typical applications include data centers, campus networks, server aggregation layers, and high-performance enterprise LANs where low latency and scalable connectivity are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): J9264A
• Product Type: Managed Ethernet Switch (Layer 3)
• Series: HP ProCurve 6600
• Ports: 24 × 10/100/1000Base-T (Gigabit Ethernet)
• Uplink Ports: 4 × SFP+ (10GbE)
• Switching Capacity: 105.6 Gbps
• Throughput: Up to 75.7 Mpps
• MAC Address Table: ~10,000 entries
• Layer Support: Layer 2 / Layer 3 switching and routing
• Routing Protocols: Static routing, dynamic routing support (model dependent)
• Management: CLI, Web GUI, SNMP, out-of-band (serial)
• Security Features: 802.1X, ACLs, RADIUS, TACACS+
• Stacking: Supported (virtual stacking capability)
• Power Supply: Dual PSU capable (redundant support)
• Power Input: 100–240 VAC, 50/60 Hz
• Operating Temperature: 5°C to 40°C
• Form Factor: 1U rack mount
• Weight: ~7.8 kg
• Status: End-of-Life / discontinued

Common Replacements:

• HPE Aruba 3810M series
• HPE Aruba 2930M series
• Aruba CX 6300 / 6400 series
