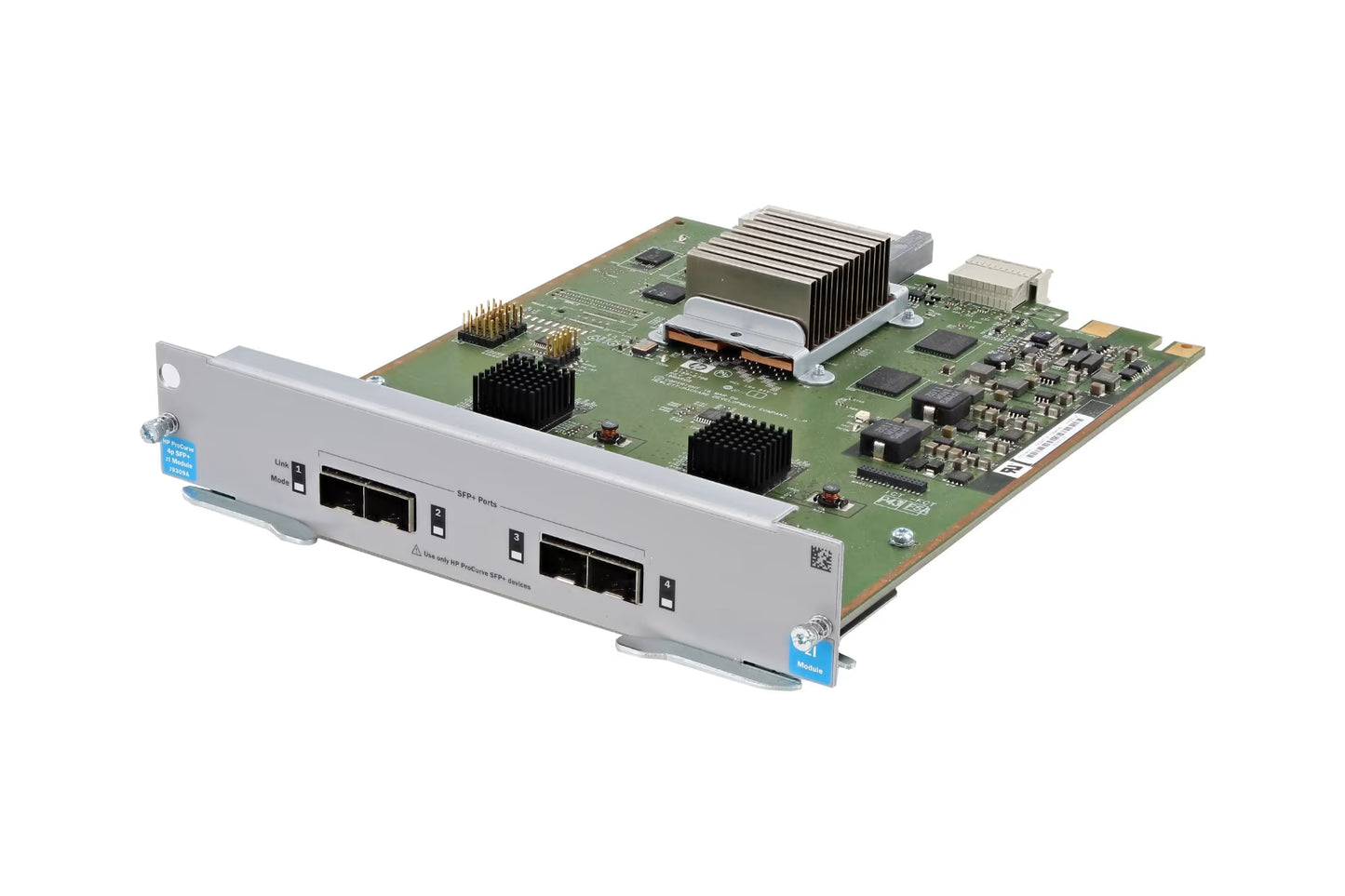

HP J9309A 4-PORT 10GBE SFP+ ZL MODULE

Description:

The HP J9309A 4-Port 10GbE SFP+ ZL Module is used in enterprise networking systems to provide high-speed uplink and fiber connectivity for HP ProCurve and Aruba modular switches. Commonly installed in core switches, aggregation layers, and data center network infrastructures. Maintenance teams and system integrators use this part for network expansion, switch upgrades, and replacement of faulty uplink modules.

Applications:

The HP J9309A module is widely used in enterprise and campus networks requiring high-bandwidth fiber uplinks and low-latency data transmission. It is commonly integrated into HP ProCurve 5400zl and compatible switch chassis in data centers, business networks, and large-scale IT infrastructures where reliable 10GbE connectivity and scalable port density are essential.

Technical Specifications:

• Manufacturer Part Number (MPN): J9309A
• Brand: HP / HPE
• Product Type: Switch Expansion Module
• Series: ProCurve / Aruba ZL
• Port Configuration: 4 x 10GbE SFP+ ports
• Interface Type: SFP+ fiber uplink
• Data Rate: 10 Gbps per port
• Total Switching Capacity: Up to 40 Gbps aggregate
• Compatibility: HP ProCurve 5400zl / 8200zl series switches
• Transceiver Support: Standard SFP+ optics
• Mounting Type: Chassis slot module
• Hot-Swap Support: Yes
• Operating Temperature: 0°C to +45°C
• Compliance Standards: CE, FCC, UL

Common Replacements:

• HPE J9538A 20-Port Gig-T / 4-Port SFP+ Module
• HPE J9537A 24-Port Gig-T v2 ZL Module
• Cisco Catalyst 4500 10GbE Module
