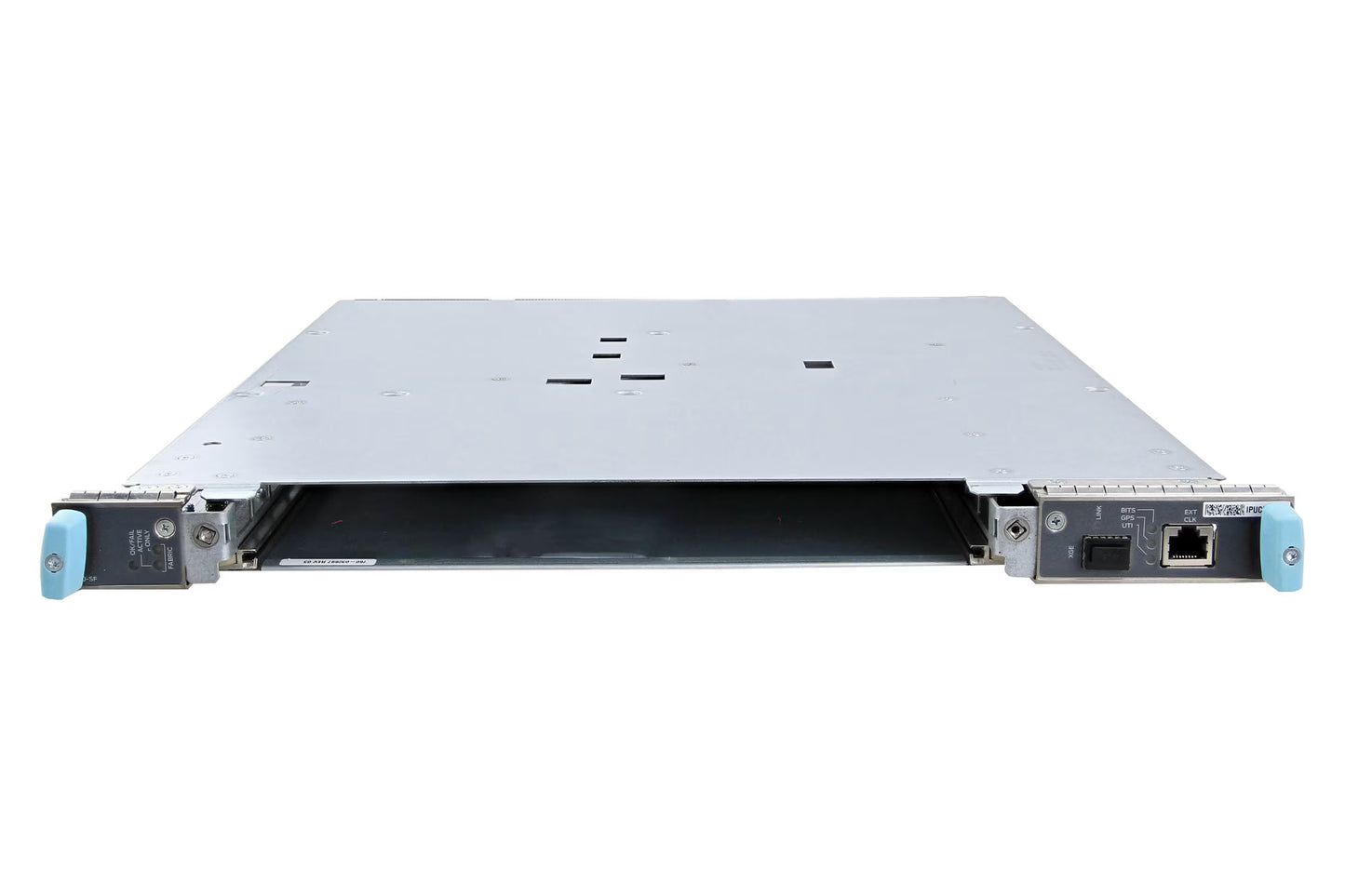

Juniper EX9200-SF EX9200 SWITCH FABRIC MODULE EX9200SF

Description:

The Juniper EX9200-SF Switch Fabric Module is used in high-performance EX9200 series core switches to provide backplane switching capacity and data forwarding. Commonly installed in enterprise core networks, data center aggregation layers, and service provider switching environments. Maintenance teams, OEMs, and system integrators use this part for system expansion, fabric redundancy, and replacement of faulty switch fabric modules.

Applications:

The Juniper EX9200-SF Switch Fabric Module is widely used in large-scale enterprise networks, data centers, and telecom infrastructures where high throughput and low-latency switching are required. It enables efficient data flow between line cards within the EX9200 chassis, supporting mission-critical applications such as cloud services, virtualization environments, and high-density traffic aggregation.

Technical Specifications:

• Manufacturer Part Number (MPN): EX9200-SF
• Brand: Juniper Networks
• Product Type: Switch Fabric Module
• Compatible Systems: Juniper EX9200 Series Switches
• Function: Backplane switching and fabric interconnect
• Form Factor: Chassis-based module
• Switching Capacity: High-throughput fabric architecture (platform-dependent)
• Installation: Slot-based insertion in EX9200 chassis
• Application Environment: Enterprise networks, data centers, telecom infrastructure
• Redundancy Support: Yes (fabric redundancy configuration)
• Cooling Requirement: System-integrated cooling

Common Replacements:

• Juniper EX9200-SF2 Switch Fabric Module
• Juniper EX9200-SF3 Switch Fabric Module
• Juniper EX9200 Switch Fabric Module (Spare)
