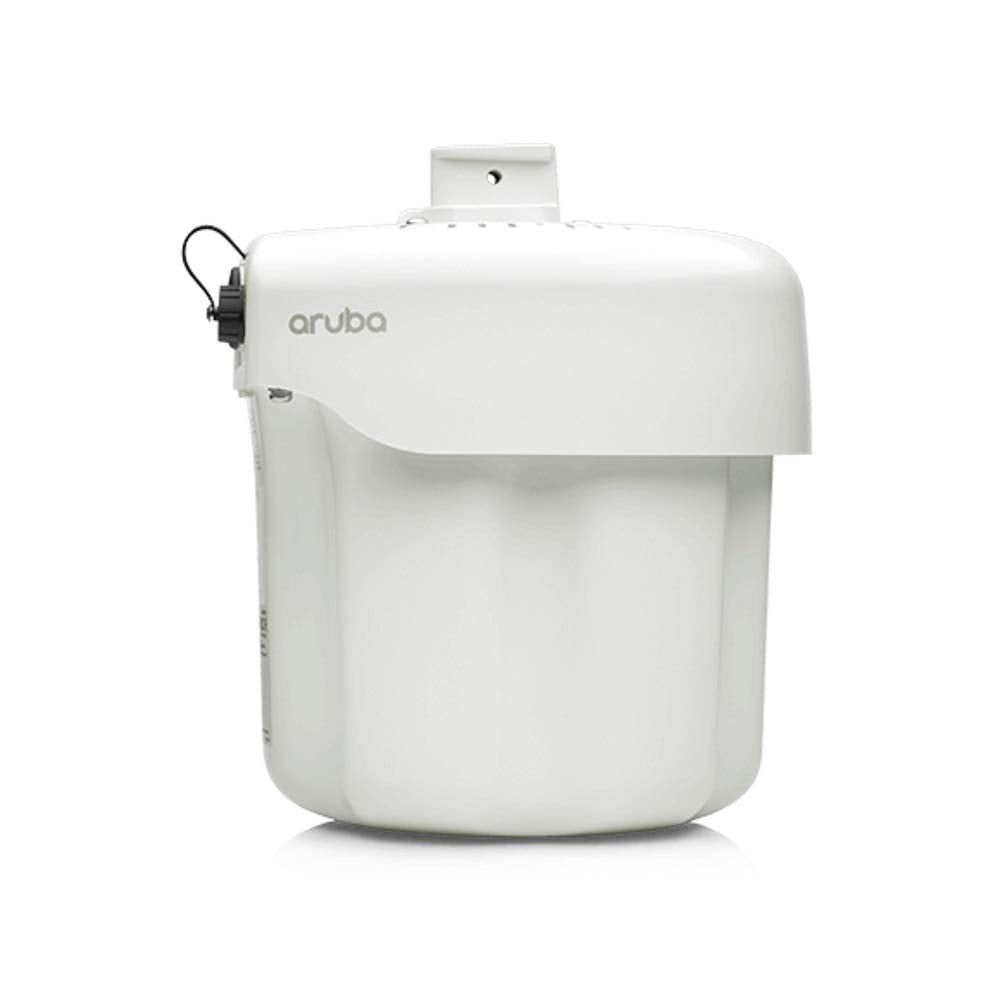

HPE Aruba AP-274 JW176A OTDR DUAL 3X3:3 802.11AC AP HPE

Description:

The HPE Aruba AP-274 (JW176A) is a high-performance outdoor 802.11ac wireless access point designed for harsh weather environments. With dual-radio support and 3x3 MIMO technology, it delivers robust and high-speed wireless connectivity for outdoor enterprise and industrial applications. The AP-274 features external antenna connectors, flexible power options including PoE and DC, and IP66/67-rated weatherproofing, making it ideal for campuses, stadiums, transportation hubs, and other challenging outdoor deployments.

Technical Specifications:

Manufacturer: Hewlett Packard Enterprise (Aruba Networks)
Model: AP-274
Part Number: JW176A
Wireless Standards: 802.11a/b/g/n/ac (Wi-Fi 5)
Radios: Dual-radio (5GHz and 2.4GHz)
MIMO: 3x3 with 3 spatial streams
Antenna: External (connectors for detachable antennas)
Maximum Data Rate: Up to 1.3 Gbps on 5GHz, 600 Mbps on 2.4GHz
Ethernet Interface: 1x 10/100/1000BASE-T (RJ45), Auto-sensing
Power Options: 802.3at PoE+, 802.3af PoE (limited), or 12V DC
Power Consumption: Max 20.9W (PoE+), 13.5W (PoE)
Mounting: Wall or pole mount kit included
Operating Temperature: -40°C to +55°C (-40°F to +131°F)
Environmental Rating: IP66/67 (dust-tight and water-resistant)
Security: WPA2/WPA3, AES, integrated firewall and intrusion protection
Management: Aruba Instant, Aruba Mobility Controller, or Aruba Central
Dimensions: 24 x 24 x 9 cm (9.4 x 9.4 x 3.5 in)
Weight: Approx. 1.7 kg (3.75 lb)
