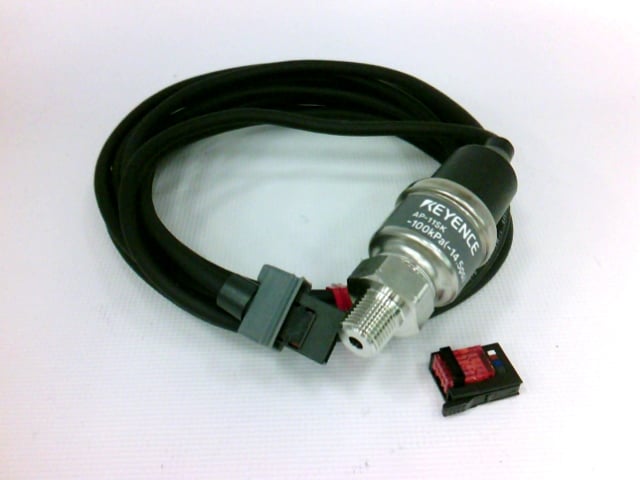

Keyence AP-11SK Pressure Sensor -14.5psi

Description:

The Keyence AP-11SK Pressure Sensor -14.5 psi is a negative pressure sensor head used in industrial vacuum and pneumatic monitoring systems. Commonly installed in vacuum handling equipment, packaging machines, and automated pick-and-place systems. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining accurate vacuum pressure control.

Applications:

The Keyence AP-11SK Pressure Sensor is used in industrial environments to monitor vacuum pressure levels in pneumatic and vacuum systems. It is widely applied in packaging lines, material handling equipment, and automated manufacturing processes where precise negative pressure measurement is essential for stable operation, product handling, and process efficiency.

Technical Specifications:

• Manufacturer: Keyence
• Part Number: AP-11SK
• Product Type: Negative Pressure Sensor Head
• Series: AP Series
• Pressure Range: 0 to -100 kPa (-14.5 psi)
• Measurement Type: Gauge pressure (negative)
• Repeatability: ±0.5% of full scale
• Connection Port: 1/8 NPT
• Protection Rating: IP67
• Pressure Resistance: Up to 500 kPa
• Operating Temperature: -10 to +70°C
• Material: Stainless steel pressure port (TYPE304 / S17400)
• Weight: Approx. 120 g

Common Replacements:

• Keyence AP-11S Pressure Sensor
• Keyence AP-10SK Compound Pressure Sensor
• Keyence AP-12SK Positive Pressure Sensor
