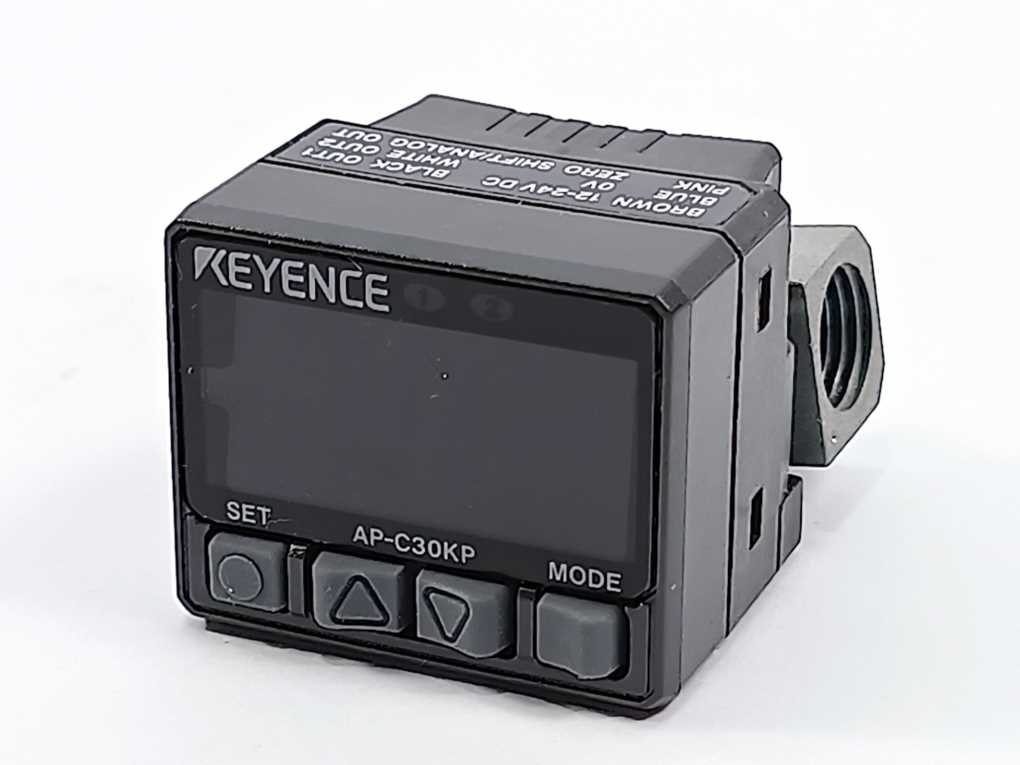

Keyence AP-C30KP Digital Pressure Sensor 0 to -29 inc hHg Multi-Range

Description:

The Keyence AP-C30KP Digital Pressure Sensor is used in industrial automation systems for multi-range air pressure measurement and monitoring. Commonly installed in pneumatic systems, packaging machines, and assembly lines requiring accurate pressure sensing and control. Maintenance teams, OEMs, and system integrators use this sensor for system integration, process monitoring, and replacement of existing pressure sensors.

Applications:

The Keyence AP-C30KP Digital Pressure Sensor is used in industrial automation environments to monitor and control air pressure in pneumatic systems. It is widely applied in pick-and-place systems, vacuum handling equipment, packaging lines, and machine automation where precise pressure feedback is essential for stable and efficient operation. The sensor supports real-time monitoring and enhances process control, system reliability, and operational efficiency.

Technical Specifications:

• Manufacturer: Keyence
• Part Number: AP-C30KP
• Product Type: Digital Pressure Sensor
• Series: AP-C30 Series
• Pressure Range: 0 to -29.9 inHg (negative), multi-range up to ±29.9 inHg
• Measurement Type: Gauge pressure (air, non-corrosive gases)
• Output Type: PNP open collector (2 outputs)
• Analog Output: 1 to 5 V
• Display: 3.5-digit, 2-color LED display (11 mm height)
• Response Time: Selectable (2.5 to 500 ms)
• Power Supply: 12 to 24 V DC ±10%
• Pressure Port: Rc (PT) 1/8
• Operating Temperature: 0°C to 50°C
• Weight: Approx. 30 g (without cable)

Common Replacements:

• Keyence AP-C30K
• Keyence AP-C31KP
• Keyence AP-C33KP
