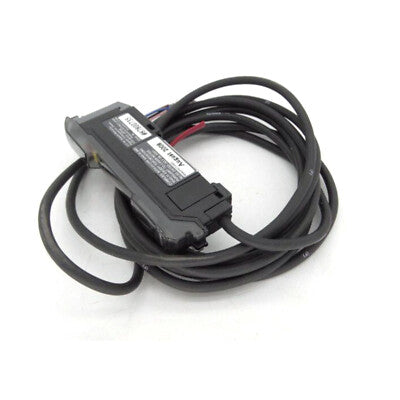

Keyence LV-11SB LV11SB Ultra Small Digital Laser Sensor Main Amplifier Unit NPN

Description:

LV11SB AMPLIFIER UNIT MAIN UNIT 12-24VDC NPN 1.7W 2M CABLE DIGITAL LASER SENSOR ULTRA SMALL Product Description The Keyence LV-11SB is an ultra-compact digital laser sensor amplifier unit, designed to provide high-precision detection in industrial applications. This NPN-type amplifier is compatible with Keyence LV series laser heads and is ideal for situations where space is limited but accurate detection is crucial. The LV-11SB offers easy setup with digital calibration and stable performance, making it suitable for detecting small objects or subtle changes in target position. Its fast response time and high sensitivity make it an excellent choice for high-speed automation and quality control systems.

Technical Specifications:

• Model Number: LV-11SB
• Type: Ultra Small Digital Laser Sensor Amplifier (NPN output)
• Output Type: NPN (open collector)
• Compatible Sensors: Keyence LV series laser sensor heads
• Response Time: 80 µs (high-speed mode) to 4 ms (long-range mode)
• Power Supply: 12-24V DC
• Sensitivity Adjustment: Digital (manual or automatic calibration)
• Display: LED digital display for easy setup and monitoring
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Dimensions: Ultra-compact design for space-saving installation (typically 10 mm width)
• Mounting: DIN rail mounting or surface mounting options
• Protection Rating: IP40 (suitable for protected environments)
