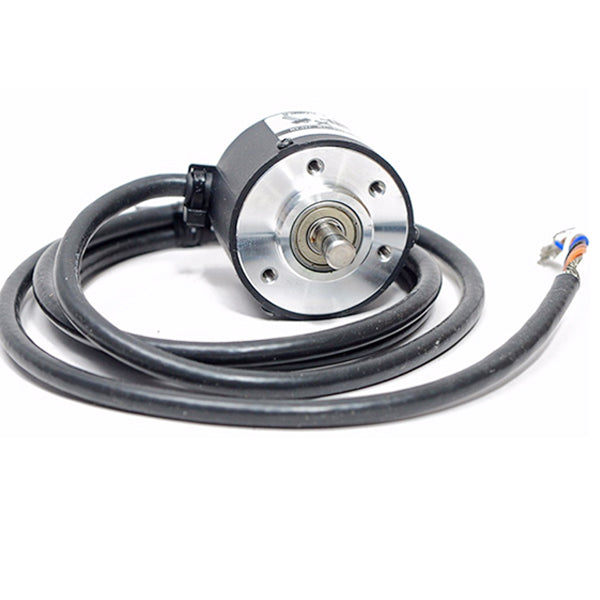

KOYO TRD-NA360NW5M Rotary Encoder TRDNA360NW5M

Description:

The KOYO TRD-NA360NW5M rotary encoder is used in industrial automation systems to provide absolute position feedback for precise motion and rotational control. Commonly installed in CNC machines, conveyors, packaging equipment, and automated production lines where accurate shaft position tracking is required. Maintenance teams and system integrators use this encoder for system repairs, retrofits, and replacement of worn or failed position feedback devices.

Applications:

The KOYO TRD-NA360NW5M encoder is widely used in automation systems requiring reliable position feedback without loss of data during power cycles. It is commonly found in CNC machining centers, material handling systems, robotics, printing equipment, and packaging lines where consistent and accurate rotational position data is critical for synchronized machine operation and control.

Technical Specifications:

• Encoder type: Absolute rotary encoder (Gray code)
• Resolution: 360 pulses per revolution (9-bit)
• Output type: NPN open collector
• Supply voltage: 10–26 VDC
• Shaft type: Solid shaft
• Shaft diameter: 8 mm
• Housing diameter: 50 mm
• Depth: 35 mm
• Cable length: 5 meters
• Output direction: Clockwise (CW)
• Protection rating: IP65 (dustproof and waterjet resistant)
• Mounting pitch: 40 mm
• Operating temperature: -10°C to 70°C
• Maximum speed: Up to approx. 3000 RPM

Common Replacements:

• KOYO TRD-NA360NWE
• KOYO TRD-N360-RZWD
• Autonics E40H8-360-3-T-24
