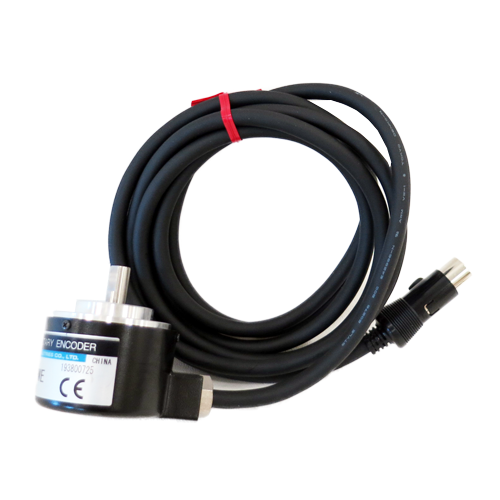

KOYO TRD-NA360PWE Rotary Encoder TRDNA360PWE

Description:

TRDNA360PWE ABSOLUTE ENCODER 360 RESOLUTION 10-26 VDC INPUT VOLTAGE PNP OPEN COLLECTOR OUTPUT CLOCKWISE ROTATION OUTPUT FROM SIDE SOLID SHAFT - 8 MM DIAMETER RELAY CONNECTOR TYPE IP65 (WATERJET PROOF) 2 M CABLE LENGTH Product Description The KOYO TRD-NA360PWE is a high-precision rotary encoder designed for accurate angular position and rotational speed measurement in industrial automation systems. This incremental encoder features a resolution of 360 pulses per revolution (PPR), providing precise feedback for motor control, robotics, and other motion control applications. The TRD-NA360PWE is built with robust materials, ensuring reliable performance even in harsh environments. Its compact design allows for easy integration into tight spaces, while the durable construction ensures long-term reliability in demanding conditions.

Technical Specifications:

• Model Number: TRD-NA360PWE
• Type: Incremental Rotary Encoder
• Resolution: 360 PPR (pulses per revolution)
• Output Type: NPN open collector output
• Shaft Diameter: 6 mm (standard)
• Supply Voltage: 5-12V DC
• Max Rotational Speed: Up to 5000 RPM
• Output Phases: A, B, Z (quadrature output with index pulse)
• Operating Temperature: -10°C to +70°C (14°F to 158°F)
• Protection Rating: IP50 (dust-protected, not waterproof)
• Housing Material: Aluminum or high-durability plastic
• Mounting: Flange or clamp mounting options
