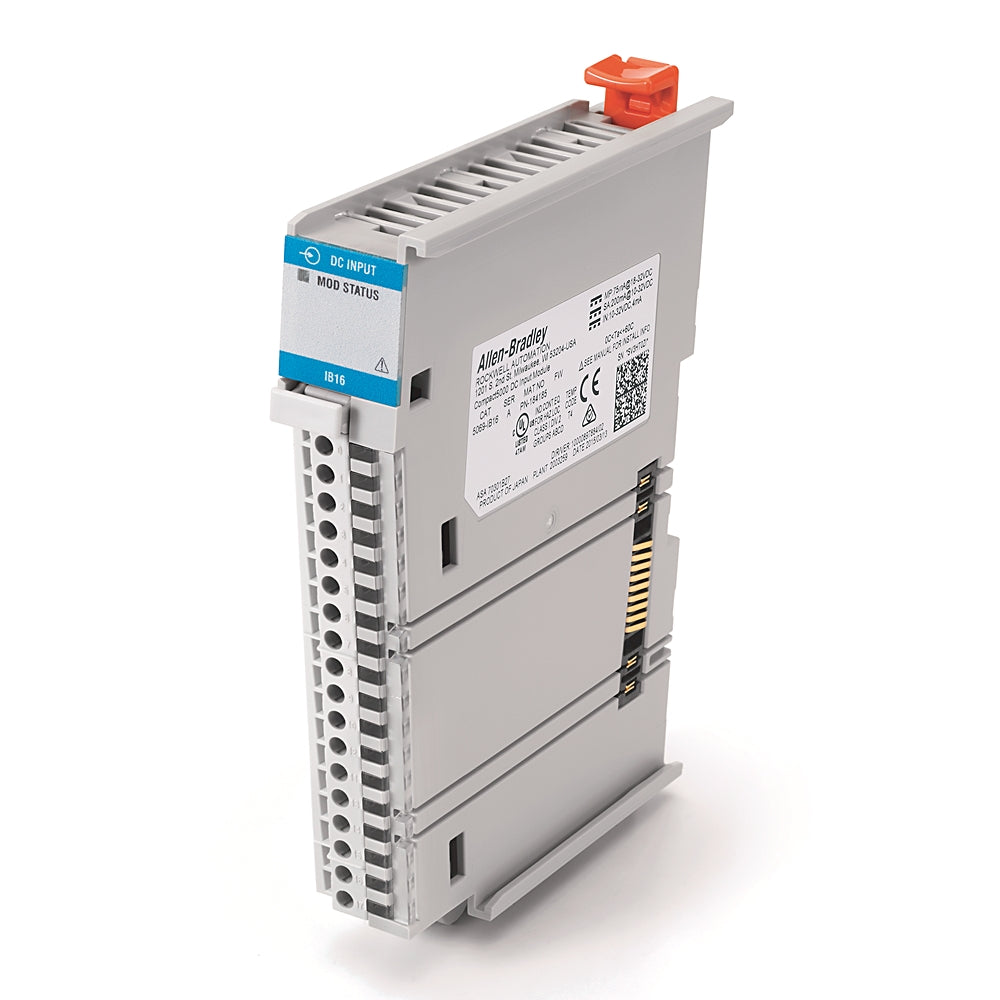

Allen-Bradley 5069-IB16 DC INPUT MODULE 5069IB16 NIB

Description:

The Allen-Bradley 5069-IB16 is a 16-point DC input module designed for use in 5069 Compact I/O (Compact 5000) control systems to monitor 24V DC discrete input signals. It interfaces field devices such as proximity sensors, limit switches, and pushbuttons to Logix 5000 controllers through high-performance backplane communication. Commonly installed in machine control panels, automated production lines, packaging equipment, and material handling systems, this module supports compact and scalable distributed I/O architectures. Maintenance teams and system integrators use this module for new panel builds, system expansion, retrofit projects, and replacement of failed DC input cards in modern Logix-based automation platforms.

Applications:

The 5069-IB16 DC input module is used to receive 24V DC signals from field devices in manufacturing plants, conveyor systems, robotic cells, and process equipment. It is widely applied in industrial automation systems requiring high-speed discrete input monitoring and integration with CompactLogix 5380 and ControlLogix 5580 controllers.

Technical Specifications:

• Manufacturer Part Number (MPN): 5069-IB16
• Brand: Allen-Bradley
• Product Type: DC Digital Input Module
• I/O Platform: 5069 Compact I/O (Compact 5000)
• Number of Inputs: 16 DC inputs
• Input Voltage: 24V DC
• Input Type: Sinking input (for sourcing field devices)
• Input Voltage Range: 10–31.2V DC
• Backplane Power Requirement: 24V DC
• Mounting: DIN rail
• Compatibility: CompactLogix 5380 / ControlLogix 5580
• Operating Temperature: 0 to 60°C (32 to 140°F)

Common Replacements:

• Allen-Bradley 5069-IB8
• Allen-Bradley 5069-OB16
• Allen-Bradley 1769-IQ16
