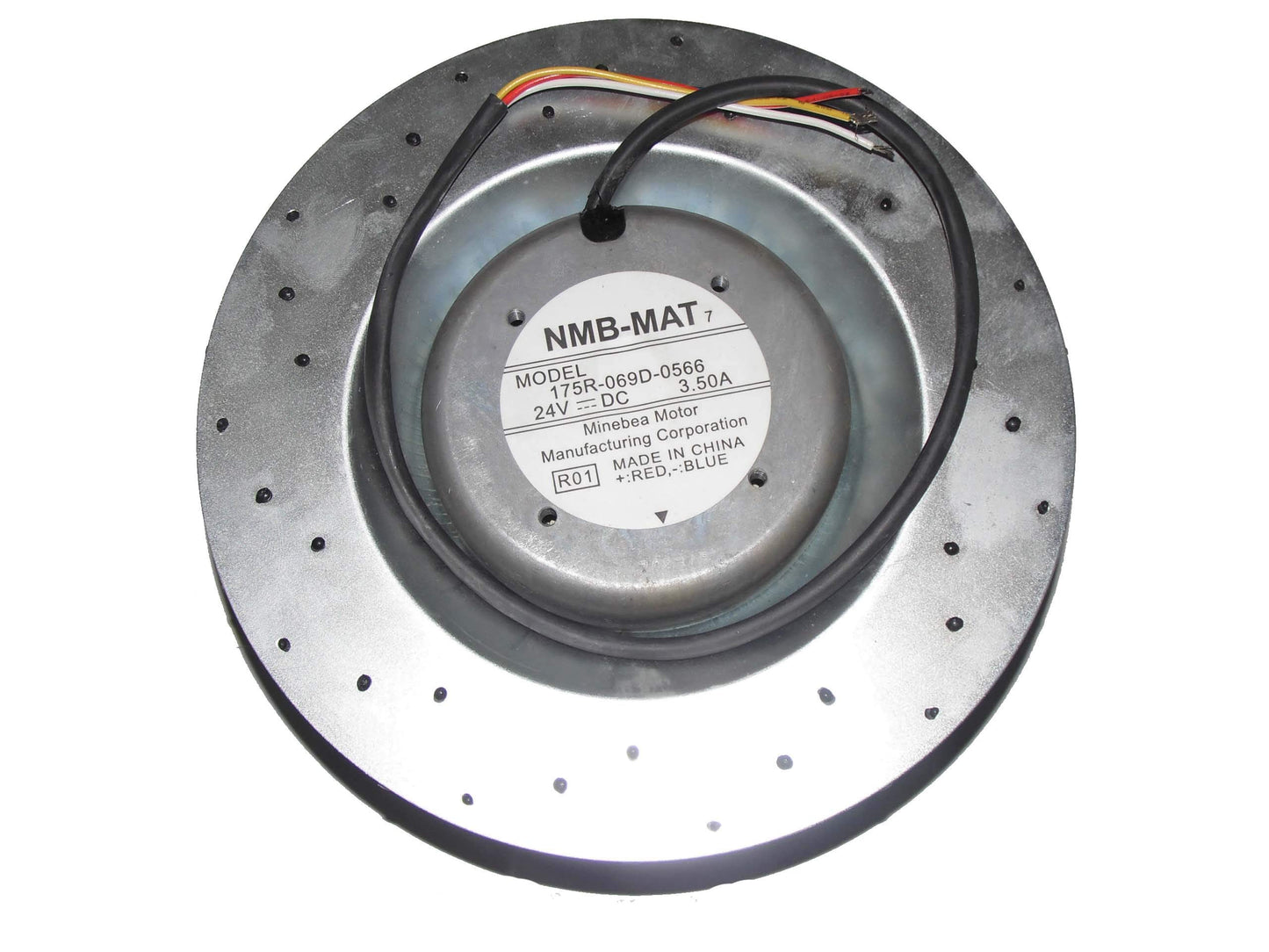

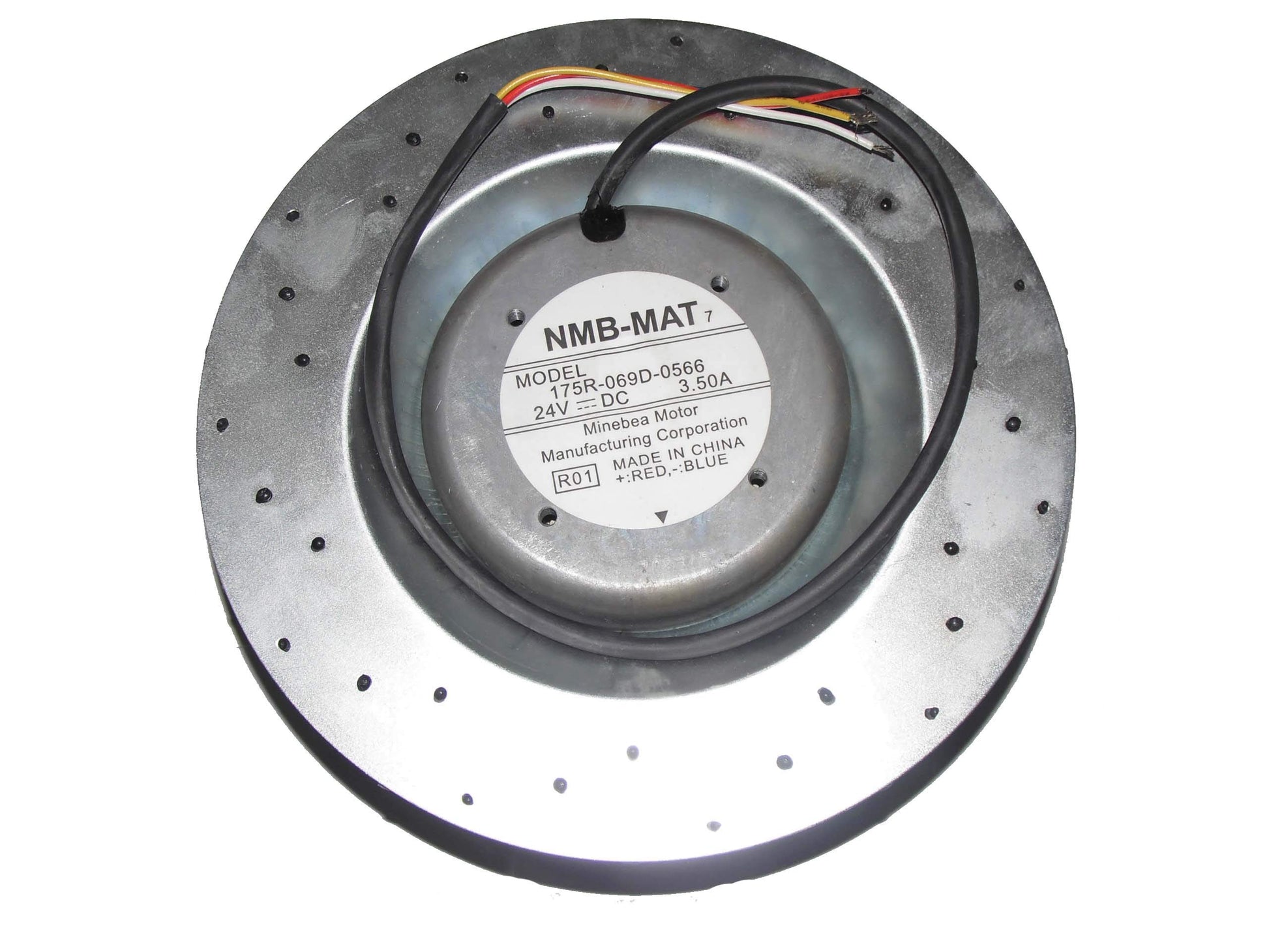

Mitsubishi 175R-069D-0566 Inverter Fan 175R069D0566

Description:

The Mitsubishi 175R‑069D‑0566 inverter fan is a cooling fan used to dissipate heat in industrial variable frequency drives (VFDs), inverters, and other power electronics. Commonly installed in VFD cabinets, motor drives, and control panels, it helps maintain optimal operating temperatures for components and prevents thermal shutdown. Maintenance teams, system integrators, and OEMs use this fan for replacements and cooling upgrades in automation systems to ensure reliable performance and extended equipment life.

Applications:

This Mitsubishi  inverter cooling fan is used in industrial automation systems where heat generation from power electronics must be effectively managed. Typical applications include VFD/inverter cabinets, servo drive enclosures, PLC control racks, industrial power supplies, and other electrical cabinets where consistent airflow reduces component stress, prevents overheating, and improves system reliability.

Technical Specifications:

• Manufacturer Part Number (MPN): 175R‑069D‑0566
• Product Type: Cooling/Inverter Fan
• Fan Type: Axial cooling fan
• Voltage: Typically 115 VAC or 230 VAC (model dependent)
• Frequency: 50/60 Hz
• Airflow: Approx. 20–50 CFM (model dependent)
• Mounting Type: Panel/enclosure mount
• Bearing Type: Sleeve or ball bearing (model dependent)
• Noise Level: Industrial‑grade low noise design
• Operating Temperature: 0 °C to 60 °C
• Protection Class: IP20 (open fan)
• Power Consumption: Model dependent low power draw
• Connector Type: Wire lead or plug‑in

Common Replacements:

• Sanyo Denki 109‑R (industrial cooling fan)
• Sunon PMD1206 (120 mm AC fan)
• ebm‑papst 4414 (industrial inverter cooling fan)
