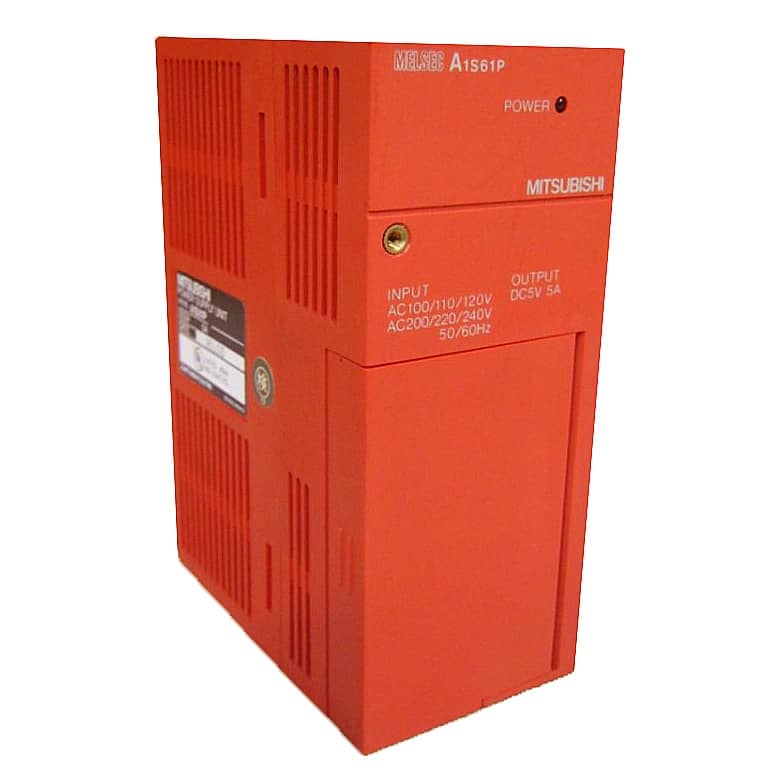

Mitsubishi A1S61P MELSEC A SERIES POWER SUPPLY UNIT DC5V 5A PLC MODULE

Description:

A1S61P POWER SUPPLY MELSEC A SERIES PROGRAMMABLE CONTROLLER INPUT: 100-240 VAC / 50/60 HZ OUTPUT: 5 VDC / 5 AMP The Mitsubishi A1S61P is a high-performance power supply unit designed for the MELSEC A Series PLC systems. This module provides a stable 5V DC output with a maximum current rating of 5A, ensuring reliable power delivery for your PLC and its associated I/O modules. Compact and robust, the A1S61P is engineered to handle the demanding power requirements of industrial automation systems while maintaining efficient operation. Its easy integration with the MELSEC A Series enhances the overall reliability and performance of the control system, making it ideal for a wide range of industrial applications.

Technical Specifications:

• Model: A1S61P
• Type: Power Supply Unit
• Output Voltage: 5V DC
• Output Current: 5A
• Input Voltage Range: 24V DC (±10%)
• Power Supply Efficiency: High efficiency with low power loss
• Cooling Method: Convection cooling
• Operating Temperature Range: 0°C to 55°C
• Operating Humidity Range: 30% to 85% RH (non-condensing)
• Dimensions: 90 mm (W) x 90 mm (H) x 60 mm (D)
• Weight: Approximately 250 g
• Compliance: CE, RoHS
