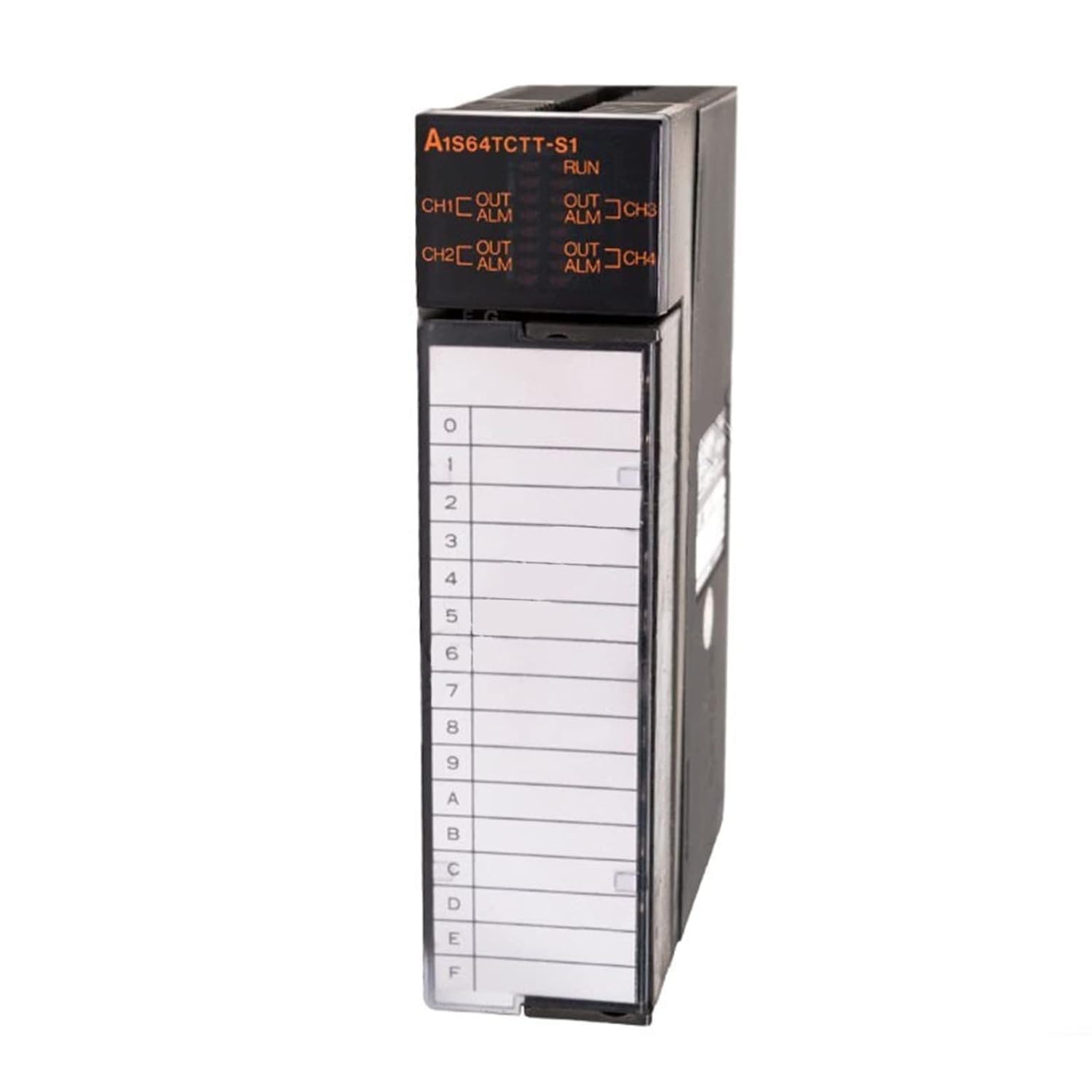

Mitsubishi A1S64TCTT-S1 Temperature Control Module A1S64TCTTS1

Description:

A1S64TCTTS1 TEMPERATURE CONTROL UNIT 4 CHANNEL INPUT TRANSISTOR OUTPUT PID CONTROL The A1S64TCTT-S1 is a high-density I/O module designed for Mitsubishi’s A series PLCs, providing 64 channels of digital input and output to expand the control capabilities of automation systems. This module offers both high-speed processing and reliable operation, making it suitable for applications such as manufacturing control, process automation, and machinery monitoring. Its versatile design allows for easy integration into existing PLC systems, ensuring efficient and flexible control over various industrial processes.

Technical Specifications:

• Model: A1S64TCTT-S1
• Type: Digital I/O Module
• Channels: 64 channels (32 inputs and 32 outputs)
• Input Type: Sink (NPN) or Source (PNP) configuration
• Output Type: Transistor outputs (NPN, 24V DC, 0.5A per point)
• Response Time:
• Inputs: 1 ms (typical)
• Outputs: 0.1 ms (typical)
• Power Supply: Supplied by the PLC system
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -25°C to 65°C
• Dimensions (W x H x D): 90 x 90 x 65 mm
• Weight: Approximately 0.8 kg
• Mounting Type: DIN rail mount
