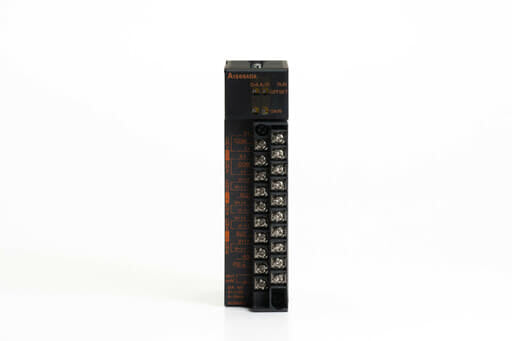

Mitsubishi A1S66ADA Programmable Logic Controller PLC Module A1S66ADA

Description:

A1S66ADA  ANALOG I/O MODULE +/- 10 VDC 0-20 MA 2 OUTPUTS 4 INPUTS Product Description The Mitsubishi A1S66ADA is an analog-digital conversion module designed for use with the MELSEC-A series Programmable Logic Controllers (PLCs). This module offers 4 analog inputs and 2 analog outputs, allowing precise control and monitoring of various analog signals in automation systems. It is commonly used in industries requiring accurate data acquisition and process control, such as manufacturing, energy management, and industrial automation.

Technical Specifications:

• Model Number: A1S66ADA
• Type: Analog Input/Output (I/O) Module
• Input Channels: 4 analog inputs
• Output Channels: 2 analog outputs
• Input Signal Range: ±10V, 0-10V, 4-20mA
• Output Signal Range: ±10V, 0-10V, 4-20mA
• Resolution: 12-bit for both input and output
• Conversion Speed: 10 ms per channel
• Input Impedance: 1MΩ for voltage input, 250Ω for current input
• Output Load Resistance: Minimum 2kΩ for voltage output
• Power Supply: 24V DC supplied by the PLC base unit
• Mounting: DIN rail or panel mounting on MELSEC-A series racks
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Dimensions: Standard PLC module size for MELSEC-A series
