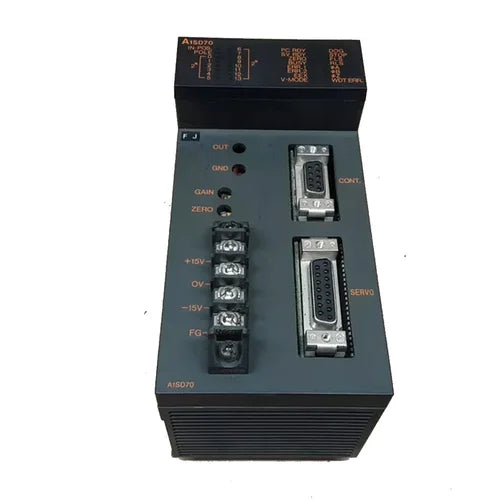

Mitsubishi A1SD70 Positioning Unit A1SD70

Description:

The Mitsubishi A1SD70 Positioning Unit is used in industrial automation systems to provide precise positioning control for servo and stepper motor applications within MELSEC-A PLC platforms. Commonly installed in CNC machines, assembly lines, and automated equipment requiring accurate point-to-point motion control. Maintenance teams, OEMs, and system integrators use this part for system expansion, replacement, and enhancing motion control capabilities.

Applications:

The Mitsubishi A1SD70 positioning unit is widely used in industrial environments where accurate and repeatable motion control is essential. It is typically applied in packaging machinery, material handling systems, indexing tables, and automated assembly equipment to ensure precise positioning, synchronized operations, and efficient production processes.

Technical Specifications:

• Manufacturer Part Number (MPN): A1SD70
• Brand: Mitsubishi Electric
• Product Type: Positioning Module
• Series: MELSEC-A Series
• Control Axes: Single-Axis Positioning Control
• Control Method: Pulse Train Output
• Positioning Modes: Point-to-Point Positioning
• Output Type: Pulse Output for Servo/Stepper Drives
• Programming: PLC Ladder / Positioning Data Table
• Communication Interface: Backplane (A Series Base Unit)
• Power Supply: Supplied via PLC Rack
• Mounting Type: Rack Mount
• Application: Motion Positioning Control

Common Replacements:

• Mitsubishi QD75P1 Positioning Module
• Mitsubishi QD77MS2 Motion Control Module
• Mitsubishi RD77MS1 Motion Control Module
