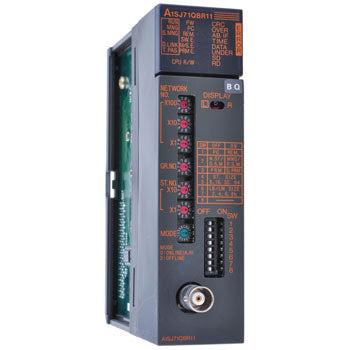

Mitsubishi A1SJ71QBR11 Processor Module A1SJ71QBR11

Description:

The Mitsubishi A1SJ71QBR11 Processor Module is used in Mitsubishi MELSEC-A series PLC systems for MELSECNET/10 network communication and controller data exchange. Commonly installed in factory automation networks, distributed control systems, and production line synchronization setups requiring high-speed PLC-to-PLC communication. Maintenance teams, OEMs, and system integrators use this module for replacement, network expansion, or communication retrofit to maintain reliable data transfer between PLC stations.

Applications:

The Mitsubishi A1SJ71QBR11 is used in MELSECNET/10 PLC communication networks, distributed manufacturing systems, conveyor line coordination, multi-station automation control, process plant control networks, machine-to-machine communication, and factory automation systems requiring high-speed data link communication.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: A1SJ71QBR11
• Product Type: Network Processor Module
• Series: MELSEC-A Series
• Network Type: MELSECNET/10
• Communication Method: Token passing network
• Transmission Speed: 10 Mbps class
• Transmission Medium: Coaxial cable / network cable (system dependent)
• Max Stations: MELSECNET supported nodes
• I/O Occupied Points: Intelligent function module
• Mounting: A series base unit rack mount
• Power Supply: From PLC backplane
• Application: PLC network communication
• Function: PLC-to-PLC data link communication

Common Replacements:

• Mitsubishi A1SJ71BR11
• Mitsubishi QJ71BR11
• Mitsubishi A1SJ71QLP21
