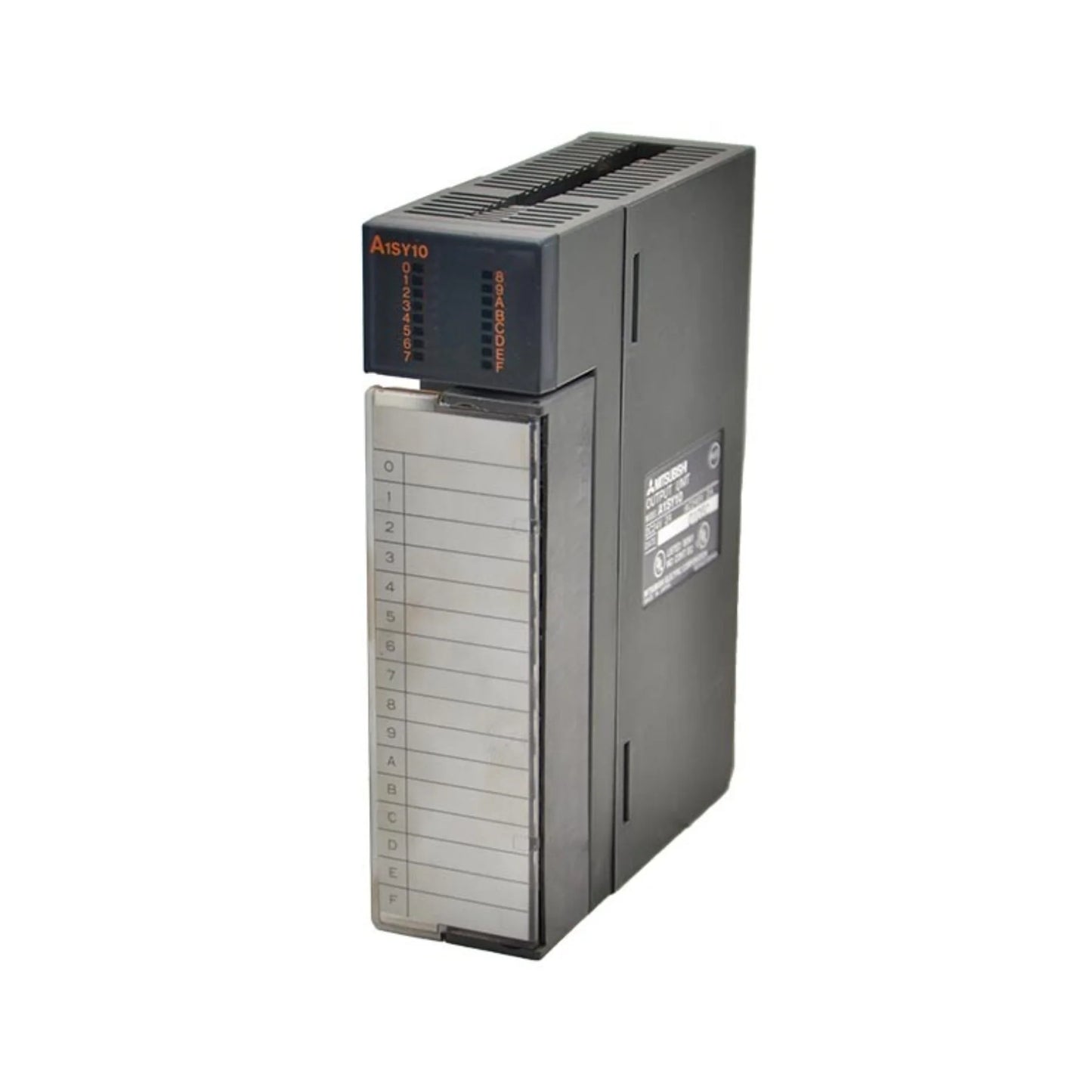

Mitsubishi A1SY10 OUTPUT MODULE 16POINT RELAY 2AMP 240VAC 24VDC PLC

Description:

The Mitsubishi A1SY10 is a digital relay output module designed for the MELSEC-A series PLC platform, providing reliable switching of external devices in industrial automation systems. It receives output signals from the PLC CPU and controls field devices such as relays, solenoids, and contactors. Commonly installed in control panels and production systems, it is used by maintenance teams and system integrators for system expansion, output control, and replacement of legacy I/O modules.

Applications:

This Mitsubishi output module is used in industrial automation systems requiring dependable relay-based switching. Typical applications include manufacturing lines, conveyor systems, packaging equipment, and machine control systems where PLC-controlled outputs are required to drive actuators and electrical loads safely and reliably.

Technical Specifications:

• Manufacturer Part Number (MPN): A1SY10
• Product Type: Digital Output Module (Relay)
• Series: MELSEC-A
• Number of Outputs: 16 points
• Output Type: Relay outputs
• Rated Load Voltage:
– 240 VAC
– 24 VDC
• Max Output Current: 2 A per point
• Output Configuration: 16-point (common grouped)
• Mounting Type: Rack-mounted (A-series base unit)
• Connection Type: Terminal block
• Function: Switching control for external loads
• Application Class: Industrial automation output control
• Status: Discontinued / legacy module

Common Replacements:

• Mitsubishi A1SY41P
• Mitsubishi A1SY81
• Mitsubishi QY41P (Q-series upgrade)
