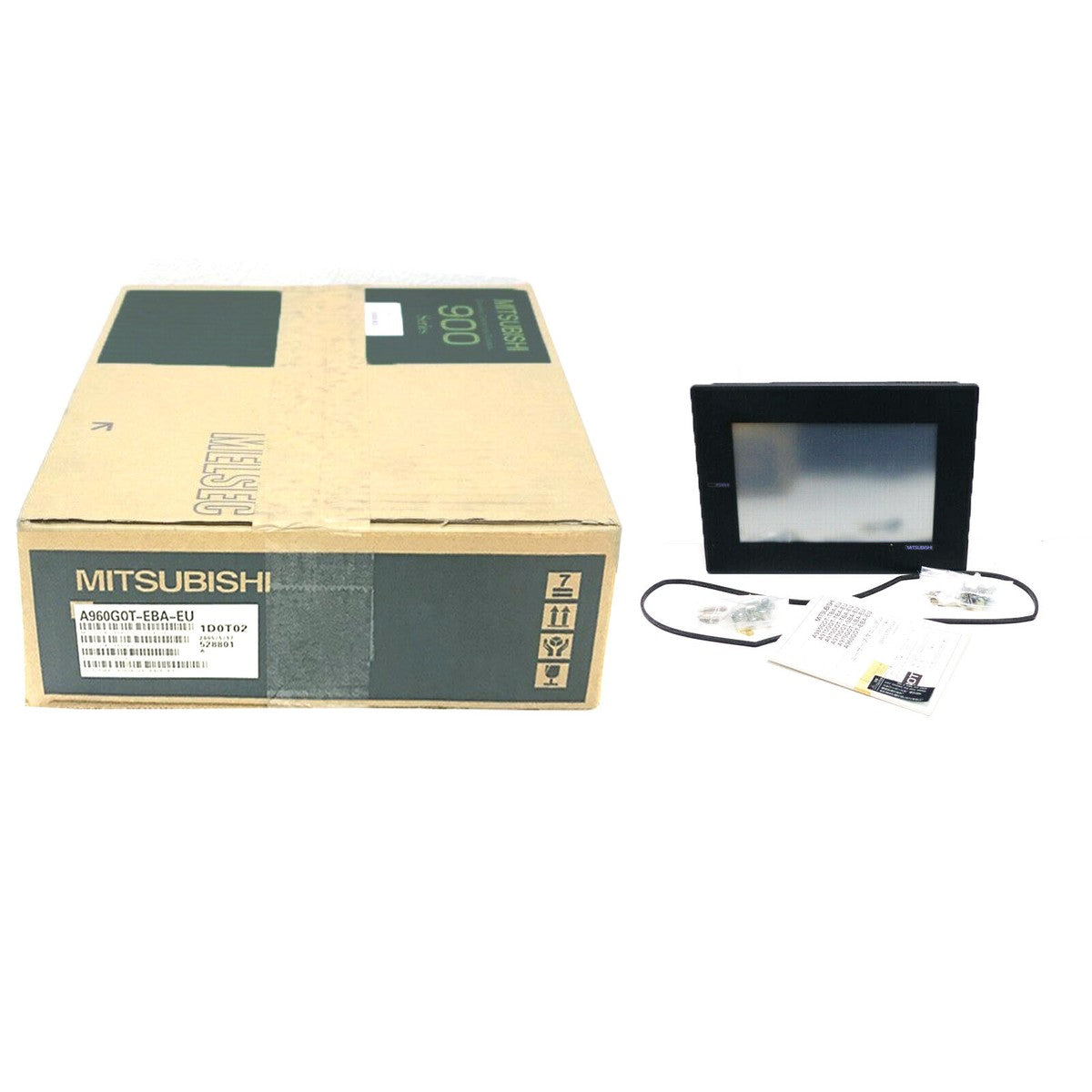

Mitsubishi A960GOT-EBA-EU Touch Screen A960GOTEBAEU

Description:

A960GOTEBAEU DISCONTINUED BY MANUFACTURER OPERATOR INTERFACE COLOR GRAPHIC 9 INCH TOUCH SCREEN DC INPUT 16 INPUT POINTS RESPONSE TIME 1.5 MS 24 VDC 7 MA The A960GOTEBAEU is a high-resolution touch screen operator interface from Mitsubishi Electric, designed to facilitate intuitive human-machine interaction for industrial automation systems. Featuring a vibrant 9.6-inch color display, this operator terminal offers a user-friendly interface for controlling and monitoring machinery and processes. The A960GOTEBAEU is equipped with advanced graphical capabilities and connectivity options, making it suitable for a wide range of applications requiring detailed visualization and easy control of automation tasks.

Technical Specifications:

• Model: A960GOTEBAEU
• Type: Touch screen operator interface
• Display: 9.6-inch TFT LCD, color
• Resolution: 640 x 480 pixels
• Touch screen: Resistive touch panel
• Communication ports: RS-232, RS-422/485, Ethernet
• Power supply: 24 V DC
• Power consumption: 18 W (typical)
• Operating temperature range: 0°C to 50°C
• Dimensions: 254 mm x 194 mm x 42 mm
• Weight: 1.5 kg
• Mounting type: Panel mount
