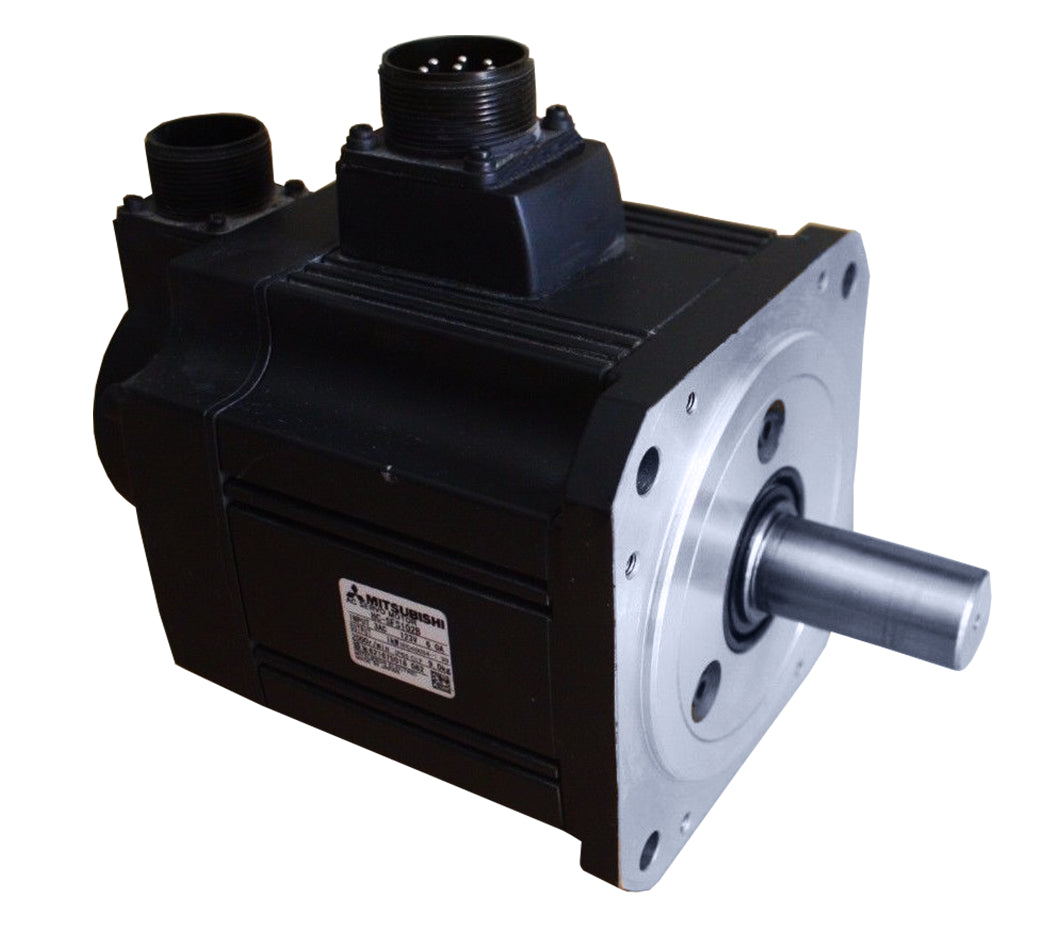

Mitsubishi AC Servo Motor HC-SFS102B HCSFS102B

Description:

The Mitsubishi HC-SFS102B AC Servo Motor is used in industrial motion control systems to deliver precise positioning, speed, and torque control with integrated braking for automated machinery. Commonly installed in CNC machines, packaging equipment, robotics, and vertical axis systems requiring secure load holding and high-performance servo operation. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and upgrading of servo-driven systems.

Applications:

The Mitsubishi HC-SFS102B servo motor is widely used in industrial automation environments where high power, accuracy, and holding capability are required. It is commonly applied in machine tools, conveyor automation, material handling systems, printing machines, and precision manufacturing systems where stable positioning and reliable performance under load are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): HC-SFS102B
• Product Type: AC Servo Motor with Brake
• Series: Mitsubishi HC-SFS Series
• Rated Output Power: 1.0 kW
• Rated Voltage: 200 VAC class
• Rated Speed: Approx. 2000–3000 RPM
• Encoder Type: High-resolution incremental encoder
• Brake: Equipped with electromagnetic brake
• Shaft Type: Straight shaft (keyed)
• Protection Class: IP65 (excluding shaft area)
• Cooling Method: Self-cooled
• Mounting: Flange mount

Common Replacements:

• Mitsubishi HC-SFS102
• Mitsubishi HG-SR102B
• Mitsubishi HF-SP102B
