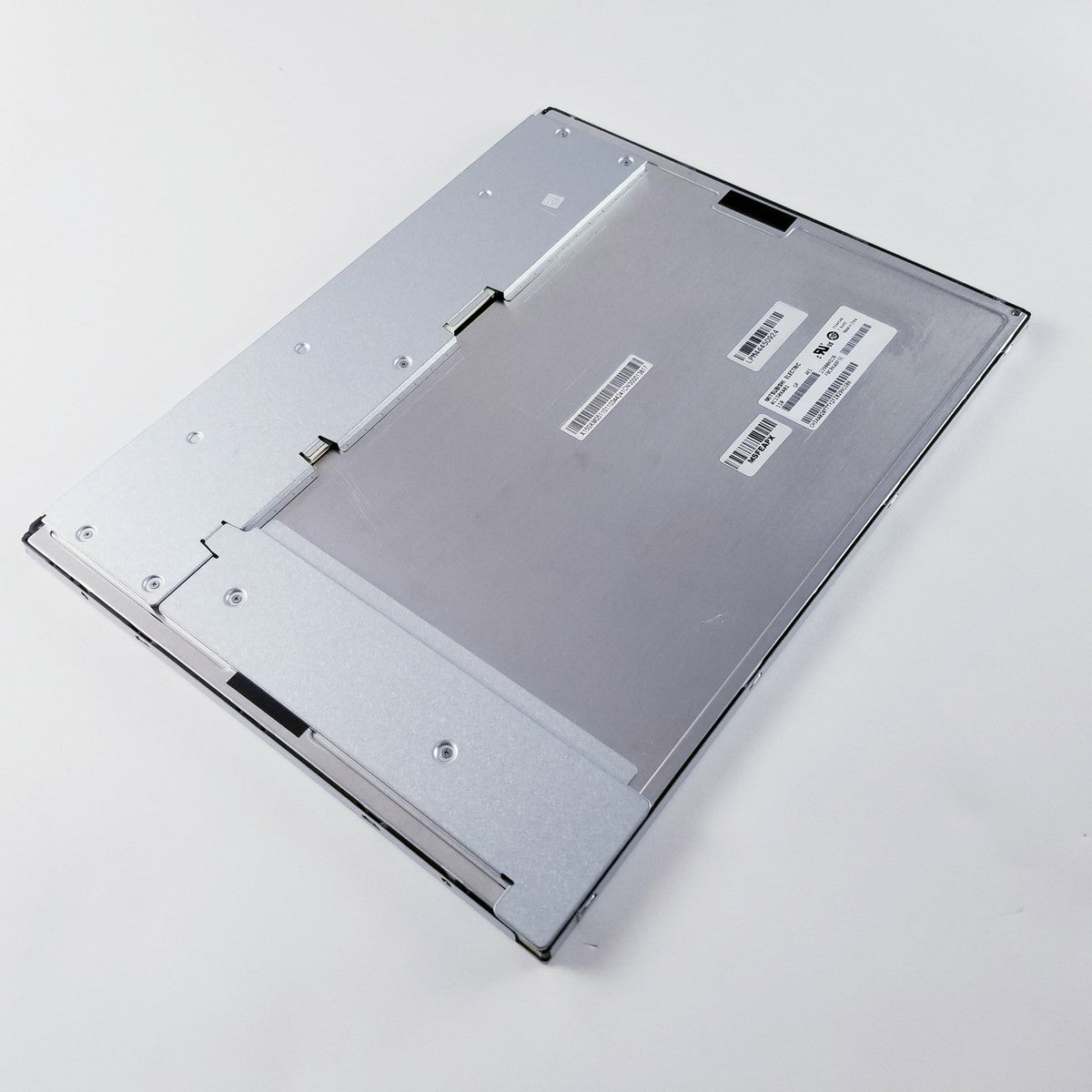

Mitsubishi AC150XA02 LCD Display 1024768 15" AC150XA02

Description:

The Mitsubishi AC150XA02 is a 15-inch TFT-LCD display module designed for industrial and automation applications, providing clear XGA-resolution visual output for control interfaces and monitoring systems. It integrates LCD panel, driver circuitry, and backlight into a single module, enabling reliable operation in demanding environments. Commonly installed in HMIs, CNC systems, and industrial control panels, it is used by maintenance teams and system integrators for display replacement, system upgrades, and repair of legacy equipment.

Applications:

This Mitsubishi LCD display module is used in industrial systems requiring reliable visual interfaces and operator feedback. Typical applications include CNC machines, industrial control panels, medical equipment, and test and measurement systems where clear display output and stable performance are critical to system operation.

Technical Specifications:

• Manufacturer Part Number (MPN): AC150XA02
• Product Type: TFT-LCD Display Module
• Display Size: 15.0 inches
• Resolution: 1024 × 768 (XGA)
• Display Type: a-Si TFT-LCD, transmissive
• Color Depth: Up to 262K / 16.7M colors
• Brightness: ~450 cd/m²
• Contrast Ratio: ~700:1
• Aspect Ratio: 4:3
• Interface: LVDS digital interface
• Input Voltage: ~3.3V logic
• Backlight: LED backlight with integrated driver
• Viewing Angle: Approx. 80° (H), 70° (V)
• Operating Temperature: 0°C to 65°C
• Storage Temperature: -20°C to 65°C
• Mounting Type: Panel mount / embedded
• Status: Obsolete / legacy display

Common Replacements:

• Mitsubishi AA150XT01
• Mitsubishi AA150XA02
• Mitsubishi AA150XJ01
