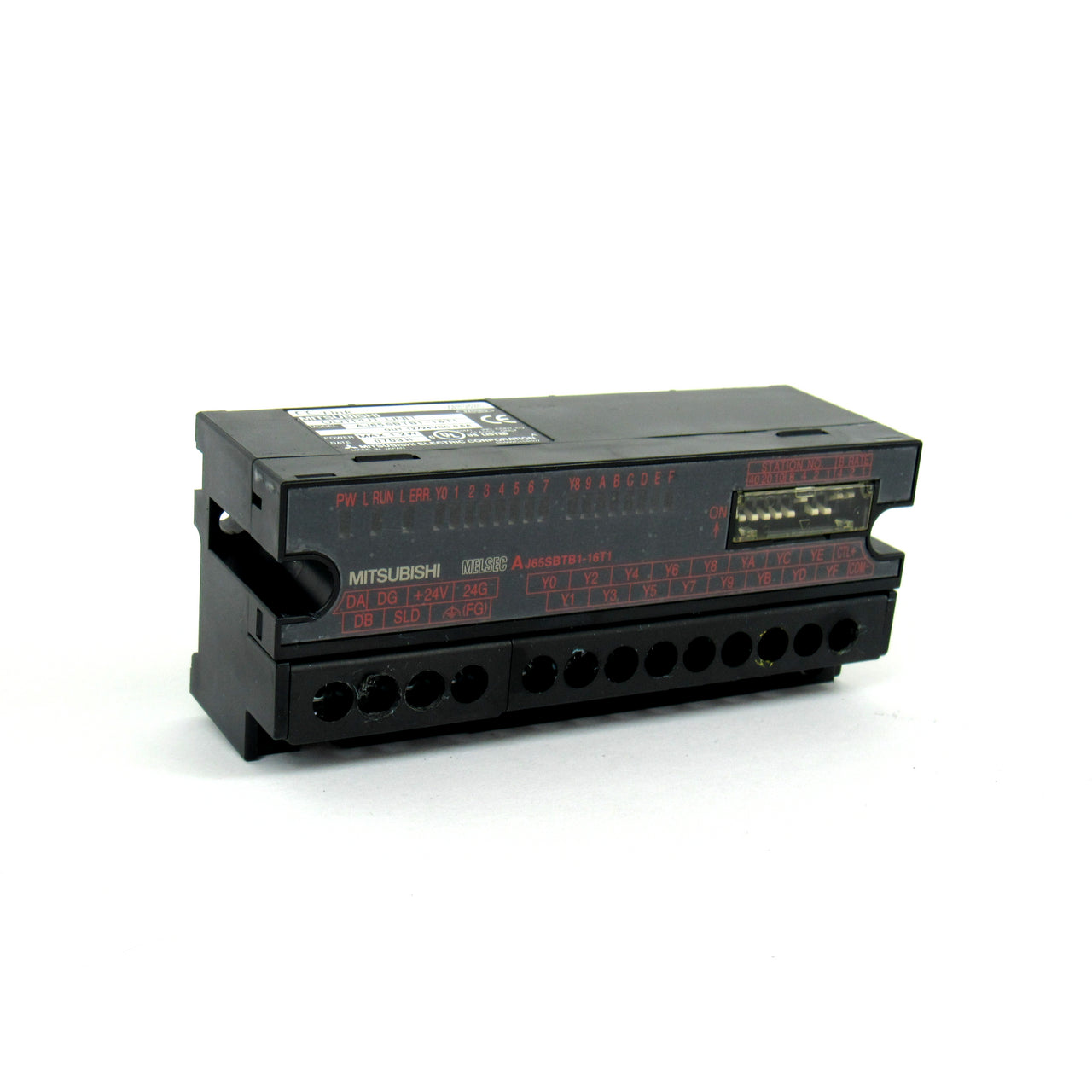

Mitsubishi AJ65SBTB1-16T1 Output Unit AJ65SBTB116T1

Description:

The Mitsubishi AJ65SBTB1-16T1 Output Unit is a PLC digital output module used in CC-Link remote I/O automation systems. Commonly installed in production lines, conveyor systems, and machine control panels. Maintenance teams and system integrators use this part for system expansion, replacement, and reliable output control in PLC-based automation systems.

Applications:

The Mitsubishi AJ65SBTB1-16T1 is used in industrial environments for controlling output devices such as relays, solenoids, and actuators within distributed control systems. The Mitsubishi module is widely applied in manufacturing automation, material handling systems, and packaging lines where remote I/O communication via CC-Link is required for efficient and centralized control. Its compact design and stable transistor outputs make it ideal for high-speed and reliable switching applications.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Part Number: AJ65SBTB1-16T1
• Product Type: PLC Digital Output Module (CC-Link Remote I/O)
• Output Type: Transistor (sink type)
• Number of Outputs: 16 points
• Rated Load Voltage: 12/24 V DC
• Operating Voltage Range: 10.2–26.4 V DC
• Output Current: 0.5 A per point, 3.6 A per common
• Output Response Time: 0.5 ms ON / 1.5 ms OFF
• Output Configuration: 16 points/common (1-wire system)
• Communication Network: CC-Link
• Power Supply: 24 V DC
• Isolation Method: Photocoupler
• Mounting: Terminal block (screw type)
• Protection Rating: IP2X

Common Replacements:

• Mitsubishi AJ65SBTB2-16T1 Output Module
• Mitsubishi AJ65BTB1-16T Output Module
• Mitsubishi AJ65SBTB1-32T1 Output Module
