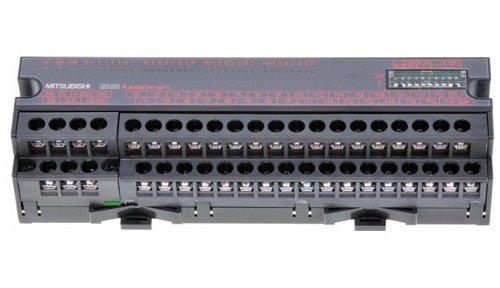

Mitsubishi AJ65SBTB1-32T1 Programmable Logic Controller Module Output Link CC AJ65SBTB132T1

Description:

AJ65SBTB132T1 OUTPUT MODULE CC-LINK TRANSISTOR OUTPUT SINK TYPE 32 POINT 12-24 VDC 0.5/4.8 AMP 65 MA The AJ65SBTB1-32T1 is a high-performance I/O module from Mitsubishi's MELSEC-A Series, designed for use in advanced automation systems. This module offers 32 high-speed transistor outputs, enabling rapid and reliable signal processing for demanding industrial applications. With its compact and durable design, it integrates seamlessly into MELSEC-A programmable logic controllers (PLCs), providing robust connectivity and efficient control over a variety of machinery and processes. The AJ65SBTB1-32T1 ensures precise operation and quick response times, making it an ideal choice for complex automation tasks requiring high-speed outputs.

Technical Specifications:

• Model: AJ65SBTB1-32T1
• Type: High-Speed Transistor Output Module
• Output Channels: 32
• Output Type: Transistor (NPN)
• Output Voltage: 24V DC
• Output Current per Point: 0.5 A
• Output Current per Module: 8 A (total)
• Response Time: 0.1 ms (typical)
• Isolation: Photo-isolation
• Mounting Type: DIN Rail
• Dimensions: 90 x 90 x 90 mm
• Weight: 250 g
• Operating Temperature Range: 0°C to +55°C
