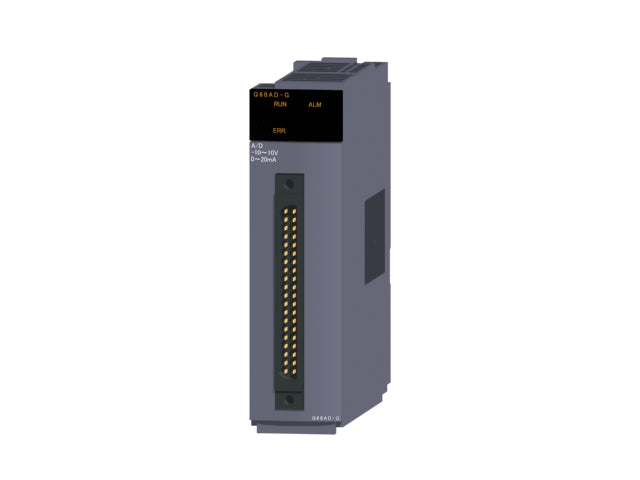

Mitsubishi ANALOG INPUT Output MODULE Q68AD-G Q Series 8 Channel 16 bit Voltage

Description:

The Mitsubishi Q68AD-G Analog Input Module is used in Mitsubishi MELSEC-Q series PLC systems for multi-channel analog signal acquisition and high-resolution data conversion. Commonly installed in process control panels, factory automation systems, and industrial monitoring equipment requiring 8-channel analog input measurement. Maintenance teams, OEMs, and system integrators use this module for replacement, analog input expansion, or control system retrofit to maintain accurate process signal monitoring.

Applications:

The Mitsubishi Q68AD-G is used in process automation systems, temperature and pressure monitoring, flow measurement equipment, chemical processing lines, factory automation panels, data acquisition systems, and industrial machinery requiring 8-channel 16-bit analog input signal conversion.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: Q68AD-G
• Product Type: Analog Input Module
• Series: MELSEC-Q Series
• Input Channels: 8 analog inputs
• Resolution: 16-bit A/D conversion
• Input Type: Voltage / Current selectable
• Voltage Input Range: -10 to +10 V, 0–10 V, 0–5 V, 1–5 V
• Current Input Range: 0–20 mA, 4–20 mA
• Accuracy: ±0.1% of full scale
• Conversion Speed: Approx. 10 ms per channel
• Isolation: Channel-to-channel isolation
• External Connection: 40-pin connector
• Occupied I/O Points: 16 points
• Mounting: MELSEC-Q base unit rack mount
• Application: Multi-channel analog signal acquisition

Common Replacements:

• Mitsubishi Q68ADV
• Mitsubishi Q68ADI
• Mitsubishi Q64AD
