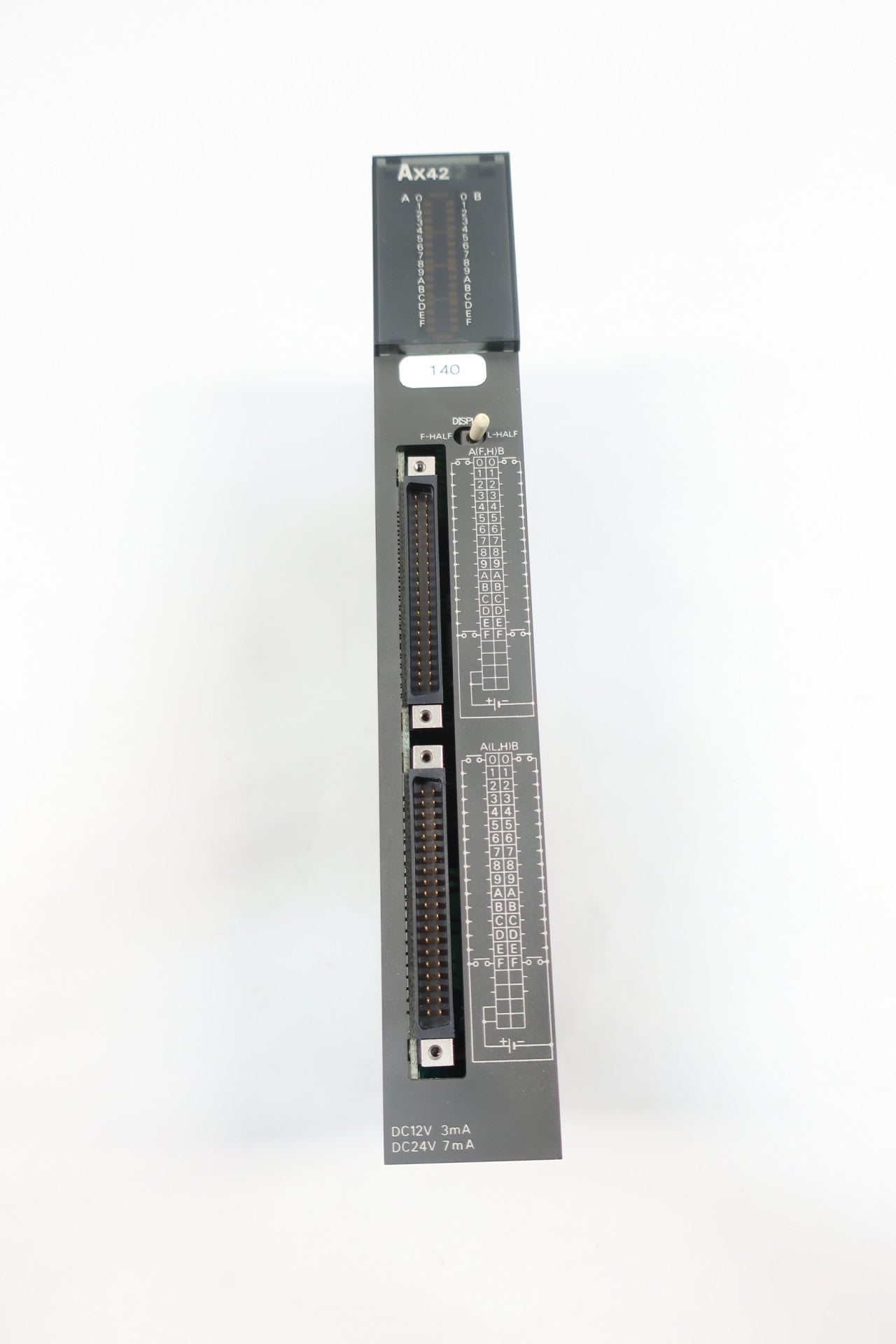

Mitsubishi AX42 Input Module

Description:

AX42 DISCONTINUED BY MANUFACTURER INPUT MODULE 64 POINT ENTER 32 POINT COMMON END 3/7 MA 12-24 V DC W/ 40 PIN CONNECTOR The Mitsubishi AX42 Input Module is a high-performance, compact I/O device designed for use with Mitsubishi’s AX series programmable logic controllers (PLCs). This module features 16 digital input channels, allowing for efficient monitoring of multiple discrete signals within industrial automation systems. It is engineered for reliable operation in harsh environments, offering high noise immunity and robust construction. With its user-friendly design, the AX42 simplifies installation and integration, making it ideal for applications requiring precise input data from various sensors and switches. This module is essential for enhancing system flexibility and improving overall control precision in manufacturing processes.

Technical Specifications:

• Model Number: AX42
• Type: Digital Input Module
• Input Channels: 16
• Input Voltage Range: 24V DC
• Input Signal Type: Sinking
• Input Current: 7-11 mA per channel
• Input Resistance: Approximately 3.5 kΩ
• Response Time: 5 ms (maximum)
• Isolation: 1500 V AC between input and PLC
• Connector Type: Screw terminal block
• Mounting Type: DIN rail
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 75°C
• Dimensions (WxHxD): 90 mm x 90 mm x 70 mm
• Weight: Approx. 250 grams
• Compliance: CE, RoHS
