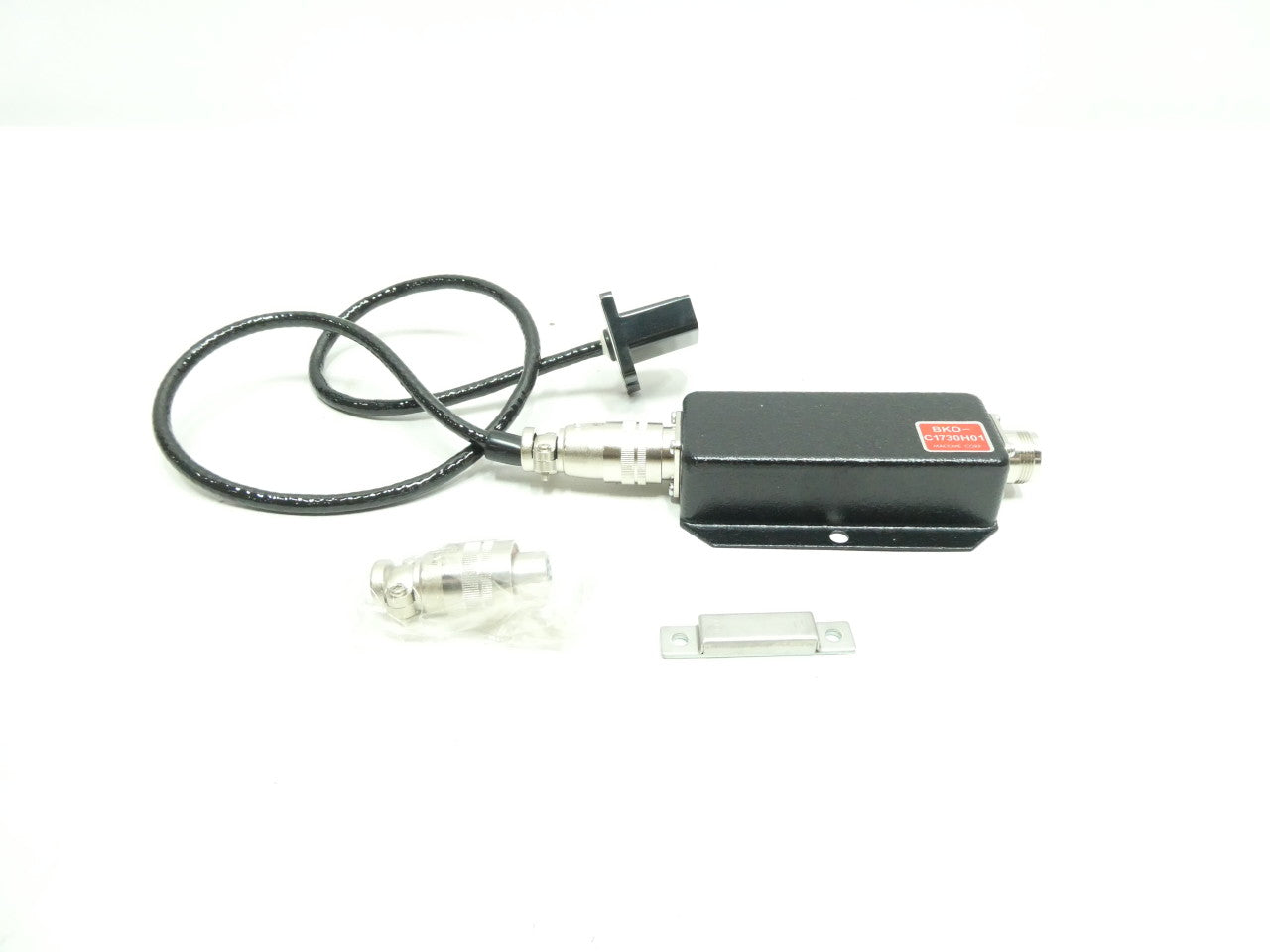

Mitsubishi BKO-C1730H01 Spindle Positioning Sensor BKOC1730H01

Description:

The Mitsubishi BKO-C1730H01 is a spindle positioning sensor designed for CNC machine tools and industrial automation systems. It provides precise position feedback for spindle orientation and synchronization, enabling accurate control of machining operations. Commonly installed in CNC lathes and machining centers, it is used by maintenance teams and system integrators for spindle alignment, feedback control, and replacement of worn or failed positioning sensors in Mitsubishi CNC systems.

Applications:

This Mitsubishi positioning sensor is used in industrial automation systems requiring accurate spindle position feedback and synchronization. Typical applications include CNC lathes, machining centers, and automated production equipment where precise spindle orientation, tool positioning, and timing control are critical to machining accuracy and system performance.

Technical Specifications:

• Manufacturer Part Number (MPN): BKO-C1730H01
• Product Type: Spindle Positioning Sensor / Encoder Feedback Device
• Brand: Mitsubishi Electric
• Application: CNC spindle orientation and positioning
• Function: Detects spindle position for control system feedback
• Output Type: Digital pulse / encoder signal (model dependent)
• Mounting Type: Machine-mounted (spindle assembly integration)
• Compatibility: Mitsubishi CNC systems (MELDAS platform)
• Signal Type: Position feedback for servo/spindle control
• Construction: Industrial-grade sensor assembly
• Operating Environment: CNC machining environments
• Status: Legacy / typically sourced as replacement part

Common Replacements:

• Mitsubishi BKO-C1730H02 (variant revision)
• Mitsubishi spindle encoder assemblies (model-specific equivalents)
• OEM-compatible spindle positioning sensors (machine builder specific)
