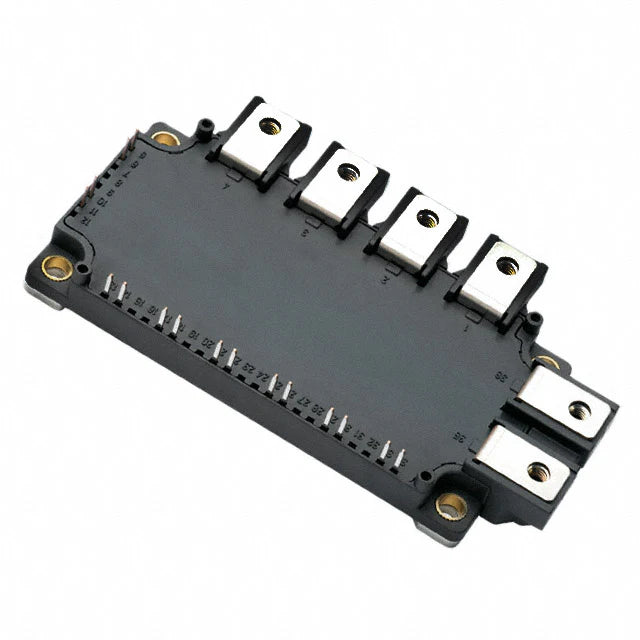

Mitsubishi CM100RX-24A Power IGBT Module CM100RX24A

Description:

The Mitsubishi CM100RX-24A is a high-power insulated gate bipolar transistor (IGBT) module designed for industrial power switching applications. Commonly installed in inverters, servo drives, motor control systems, and power conversion equipment, it enables efficient high-current switching and reliable energy control. Maintenance teams, system integrators, and OEMs use this module for replacements, repairs, and power electronics builds where robust performance and thermal stability are required.

Applications:

The Mitsubishi CM100RX-24A IGBT power module is used in industrial environments requiring high-efficiency switching and power conversion. Typical applications include variable frequency drives (VFDs), servo amplifiers, UPS systems, welding equipment, and renewable energy inverters where stable switching, low losses, and high current handling are critical for system performance and reliability.

Technical Specifications:

• Manufacturer Part Number (MPN): CM100RX-24A
• Product Type: IGBT Power Module (Insulated Semiconductor)
• Configuration: 3-phase inverter bridge with brake circuit (7-pack design)
• Rated Collector-Emitter Voltage (Vces): ~1200 V
• Continuous Collector Current (Ic): ~100 A
• Gate-Emitter Voltage (Vge): ±20 V max
• Power Dissipation: ~565 W
• Package Type: Industrial power module with insulated baseplate
• Mounting Type: Heatsink / chassis mount
• Insulation Voltage: ~2500 Vrms
• Operating Temperature Range: −40 °C to 150 °C
• Construction: Copper baseplate for thermal dissipation
• Compliance: RoHS compliant

Common Replacements:

• Mitsubishi CM100RX-24S
• Mitsubishi CM100RX-24T
• Infineon FF100R12KT4
• Semikron SKM100GB12T4
