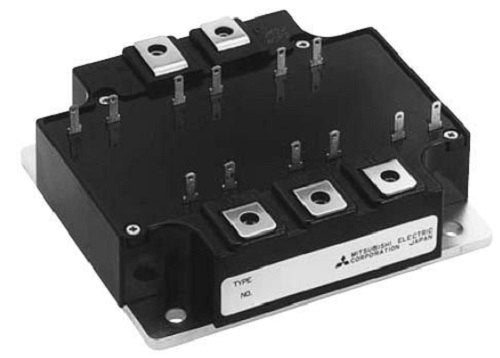

Mitsubishi CM100TU-24F IGBT Module CM100TU24F

Description:

The Mitsubishi CM100TU-24F IGBT Module is used in industrial power electronics systems to switch and control high voltage and current in inverter and motor drive applications. Commonly installed in variable frequency drives, CNC machines, and industrial power control equipment requiring efficient and reliable switching. Maintenance teams, OEMs, and system integrators use this part for repair, retrofit, and replacement of IGBT power modules.

Applications:

The Mitsubishi CM100TU-24F is widely used in industrial environments such as VFD systems, servo drives, welding equipment, and power conversion units where stable switching performance and thermal efficiency are essential. It supports reliable operation in applications requiring consistent power control under demanding electrical loads.

Technical Specifications:

• Manufacturer Part Number (MPN): CM100TU-24F
• Brand: Mitsubishi Electric
• Product Type: IGBT Module
• Rated Current: 100 A
• Voltage Rating: 1200 V
• Configuration: Dual IGBT module
• Mounting Type: Screw-mounted module
• Cooling Method: Heatsink / forced air cooling
• Insulation Type: Insulated base module
• Application: Inverters, motor drives, and power control systems
• Package Type: Industrial power module
• Operating Environment: High-power industrial applications

Common Replacements:

• Mitsubishi CM150TU-24F
• Mitsubishi CM100DU-24F
• Mitsubishi CM75TU-24F
