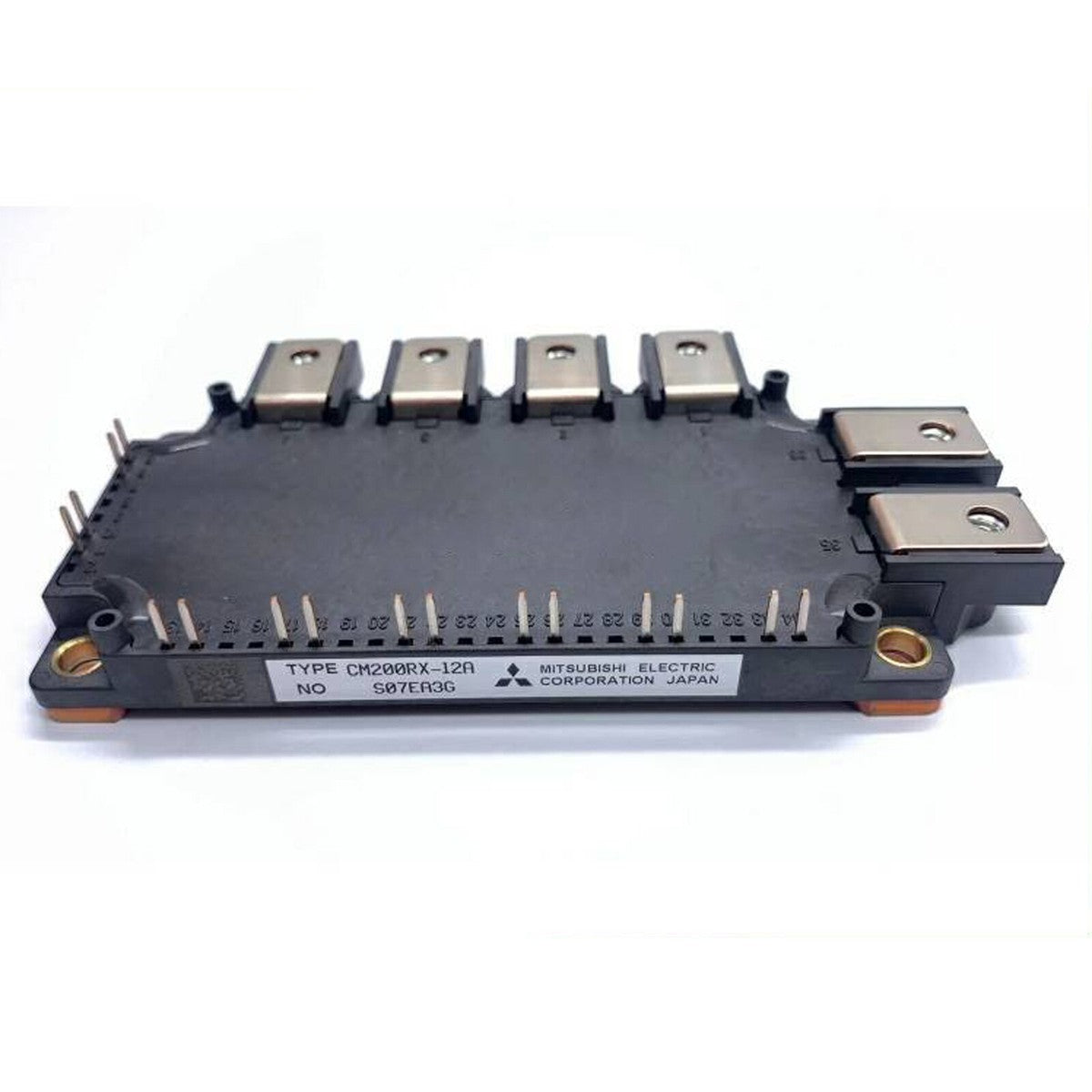

Mitsubishi CM200RX-12A IGBT Module CM200RX12A

Description:

The Mitsubishi CM200RX-12A IGBT Module is used in industrial inverter and servo drive power stages for high-power switching and motor control applications. Commonly installed in variable frequency drives, servo amplifiers, UPS systems, and CNC machinery requiring high-current IGBT switching modules. Maintenance teams, OEMs, and system integrators use this module for replacement, repair, or power stage restoration to maintain reliable drive operation and prevent equipment downtime.

Applications:

The Mitsubishi CM200RX-12A is used in AC motor inverter drives, servo drive amplifiers, UPS power systems, welding machines, CNC spindle drives, material handling equipment, and industrial automation systems requiring 200A class IGBT switching modules for motor control.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: CM200RX-12A
• Product Type: IGBT Power Module
• Configuration: Seven-pack inverter with brake chopper
• Collector-Emitter Voltage: 600 V
• Collector Current: 200 A
• Pulse Collector Current: 400 A
• Isolation Voltage: 2500 V
• Junction Temperature: -40°C to +150°C
• Module Type: Insulated baseplate IGBT module
• Mounting: Screw mount to heatsink
• Cooling: External heatsink required
• Terminals: Power terminal screw connections
• Application: High-power inverter and servo drive switching
• Case Style: Industrial module package

Common Replacements:

• Mitsubishi CM200DY-12NF
• Mitsubishi CM150RX-12A
• Mitsubishi CM200RL-12NF
