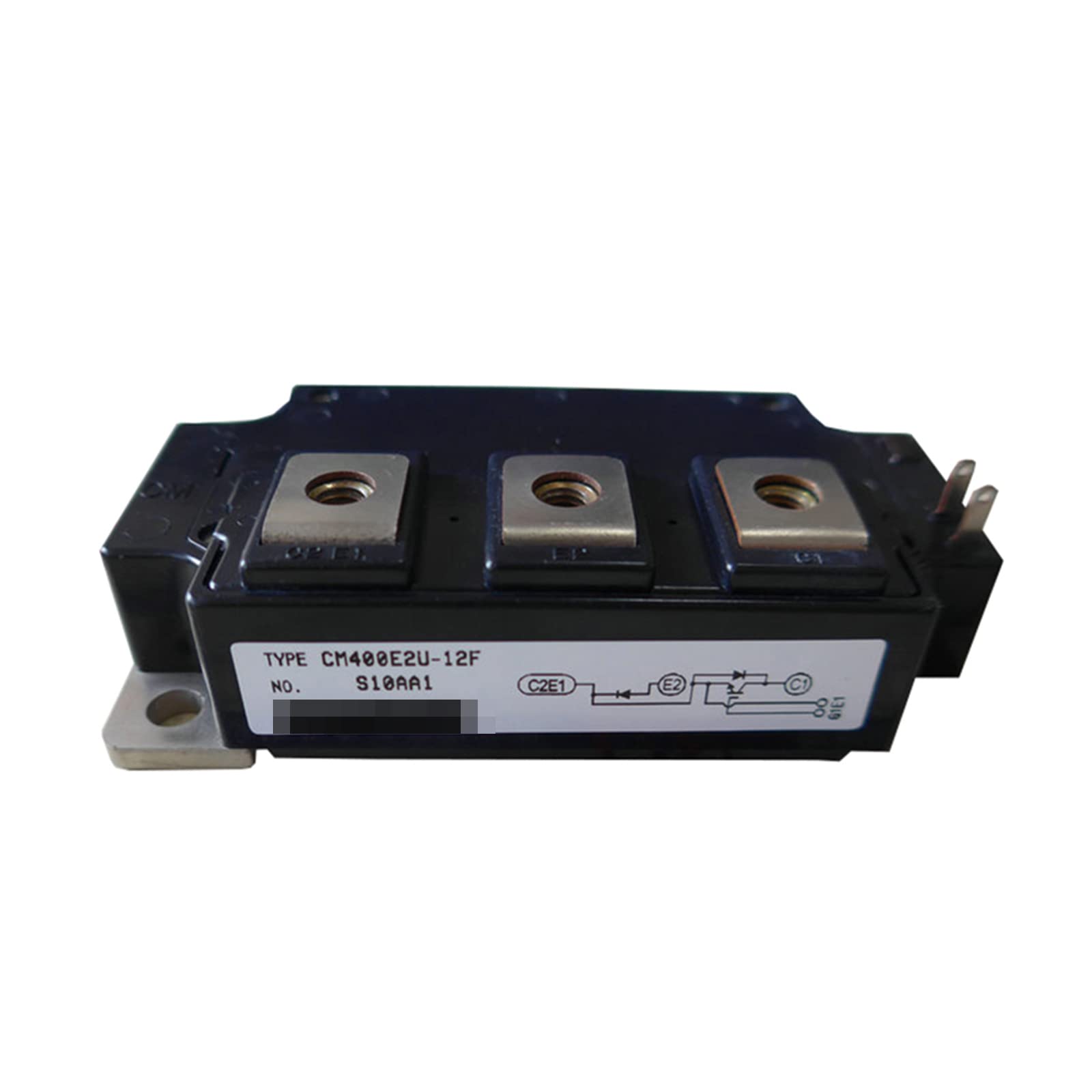

Mitsubishi CM400E2U-12F IGBT Module CM400E2U12F

Description:

The Mitsubishi CM400E2U-12F is an IGBT (Insulated Gate Bipolar Transistor) module used in industrial power systems for efficient switching and controlling of electrical power. Commonly installed in motor drives, inverters, and power supply systems, it ensures reliable power conversion and handling in high-performance applications. Maintenance teams, system integrators, and OEMs use this IGBT module for system control, upgrades, and replacements in power electronics that require high switching efficiency and robust performance.

Applications:

This IGBT module is widely used in industrial applications that demand high-speed switching and power management. It is typically used in motor drives, HVAC systems, welding equipment, uninterruptible power supplies (UPS), and other power conversion systems where efficient and reliable power switching is essential to maintaining system performance and stability.

Technical Specifications:

• Manufacturer Part Number (MPN): CM400E2U-12F
• Product Type: IGBT Power Module
• Rated Voltage: 1200 V
• Rated Current: 400 A
• Switching Frequency: 20 kHz
• Power Loss: Low switching losses
• Package Type: E2U
• Operating Temperature: -40°C to 150°C
• Mounting Type: Direct mounting on heatsink
• Thermal Resistance: 0.27°C/W (junction to case)
• Features: Short-circuit protection, over-temperature protection
• Protection Class: IP20
• Certification: UL, CE

Common Replacements:

• Mitsubishi CM400E2Y-12F
• Infineon IKW40N120T2
• Semikron SKM400GB128D
