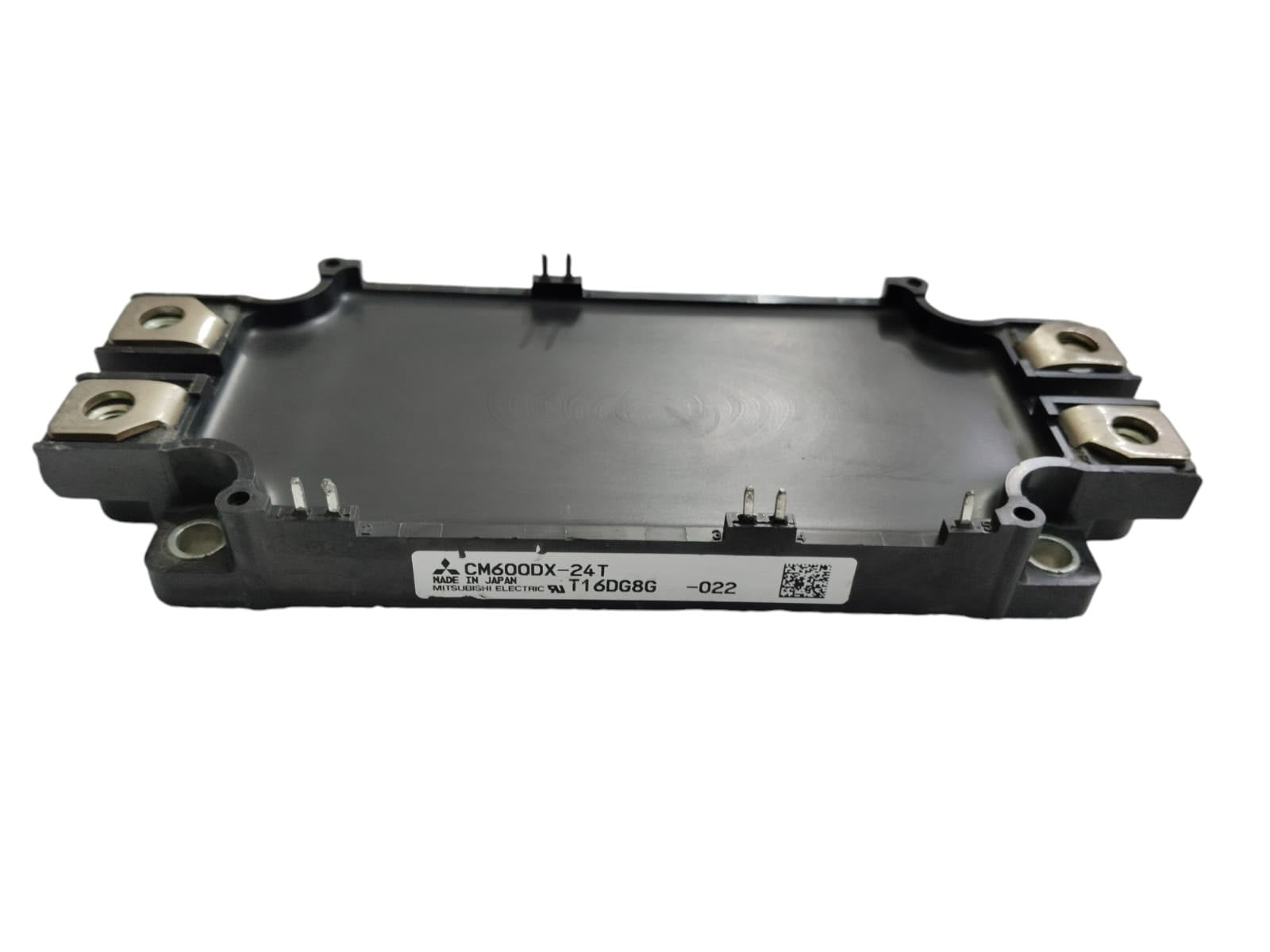

Mitsubishi CM600DX-24T Power Module Supply CM600DX24T

Description:

The Mitsubishi CM600DX-24T is a high-power IGBT (Insulated Gate Bipolar Transistor) module designed for industrial power conversion and switching applications. Commonly installed in inverters, motor drives, UPS systems, and high-power industrial equipment, it integrates dual IGBT switches with free-wheel diodes in a single insulated module. Maintenance teams, system integrators, and OEMs use this module for high-efficiency power control, system upgrades, and replacement of high-current semiconductor modules in demanding environments.

Applications:

This Mitsubishi power module is used in industrial systems requiring high-current switching and reliable power conversion. Typical applications include motor drives, industrial inverters, wind power converters, UPS systems, welding equipment, and large power supplies where efficient switching, thermal performance, and durability are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): CM600DX-24T
• Product Type: IGBT Power Module (Dual / Half-Bridge)
• Configuration: Dual IGBT with integrated free-wheel diodes
• Collector-Emitter Voltage (VCES): 1200 V
• Continuous Collector Current (IC): 600 A
• Pulse Current: Up to ~1200 A
• Gate-Emitter Voltage (VGES): ±20 V
• Collector-Emitter Saturation Voltage: ~1.65–2.05 V
• Power Dissipation: ~2.8–3.1 kW
• Junction Temperature Range: -40 °C to +150 °C
• Max Junction Temperature (Transient): Up to 175 °C
• Isolation Voltage: ~2500 VAC (terminal to baseplate)
• Switching Characteristics: Fast switching for inverter applications (ns-range switching times)
• Mounting Type: Screw-mount baseplate (heatsink required)
• Cooling: External heatsink required
• Construction: Copper baseplate, insulated module design

Common Replacements:

• Mitsubishi CM600DX-24T1
• Mitsubishi CM600DXP-24T
• Infineon FF600R12ME4
