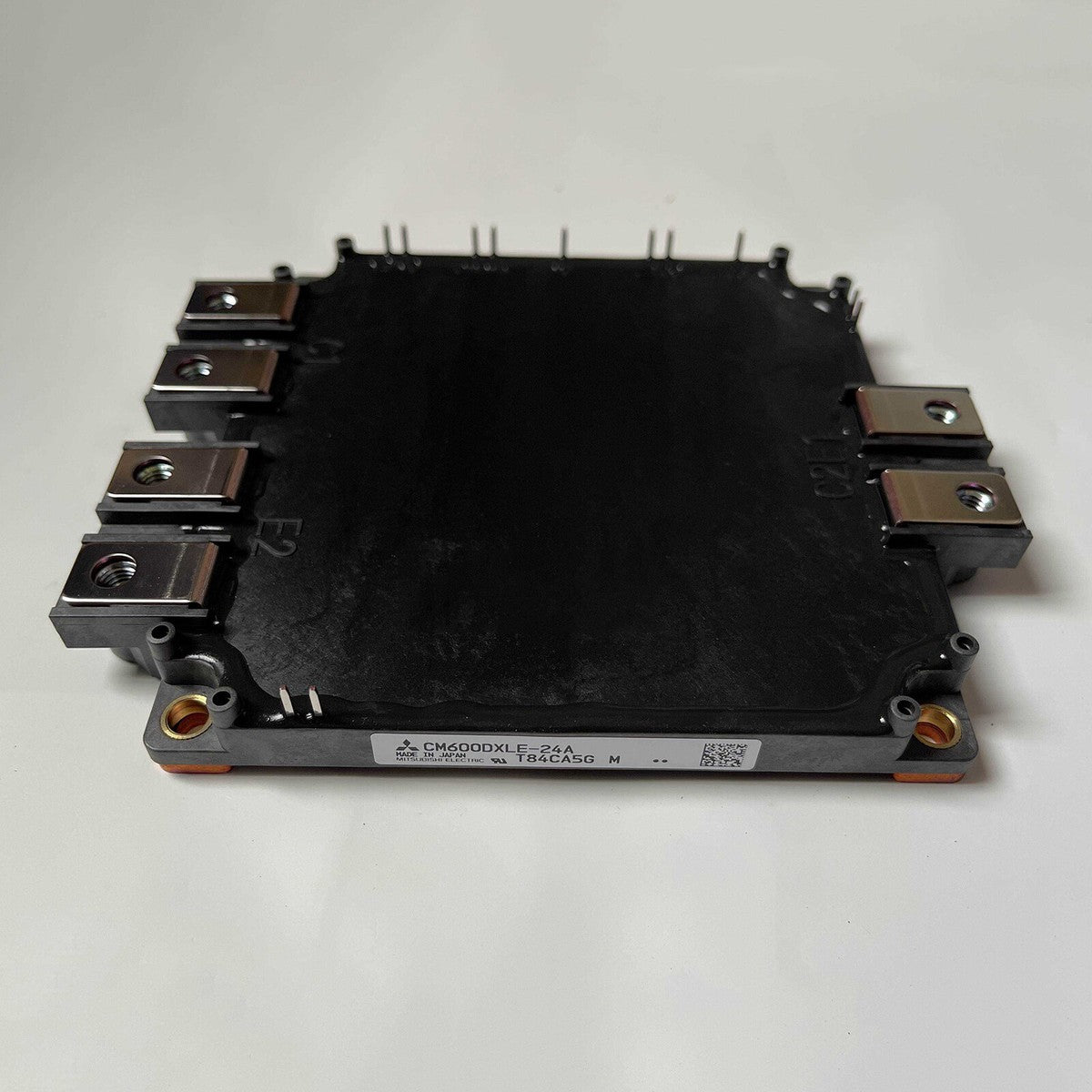

Mitsubishi CM600DXLE-24A IGBT Module CM600DXLE24A

Description:

The Mitsubishi CM600DXLE-24A IGBT Module is used in industrial inverter and servo drive power stages for high-power switching and motor control applications. Commonly installed in variable frequency drives, UPS systems, welding equipment, and large motor control systems requiring high-current IGBT modules. Maintenance teams, OEMs, and system integrators use this module for replacement, repair, or power stage restoration to maintain reliable drive operation and prevent equipment downtime.

Applications:

The Mitsubishi CM600DXLE-24A is used in high-power inverter drives, servo amplifiers, UPS power supplies, welding machines, CNC spindle drives, traction systems, and industrial automation equipment requiring 600A class IGBT switching for three-phase motor control.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: CM600DXLE-24A
• Product Type: IGBT Power Module
• Configuration: Dual IGBT half-bridge module
• Collector-Emitter Voltage (VCES): 1200 V
• Collector Current (IC): 600 A
• Pulse Collector Current: 1200 A (typical class)
• Gate-Emitter Voltage: ±20 V
• Module Type: Insulated baseplate power module
• Operating Temperature (Tj max): 150–175°C class
• Mounting: Screw mount to heatsink
• Cooling: External heatsink required
• Terminal Type: Power screw terminals
• Application: High-power inverter and motor drive switching
• Structure: Integrated free-wheel diode
• Insulation: Electrically isolated baseplate

Common Replacements:

• Mitsubishi CM600DXL-24A
• Mitsubishi CM600DY-24H
• Mitsubishi CM800DXLE-24A
