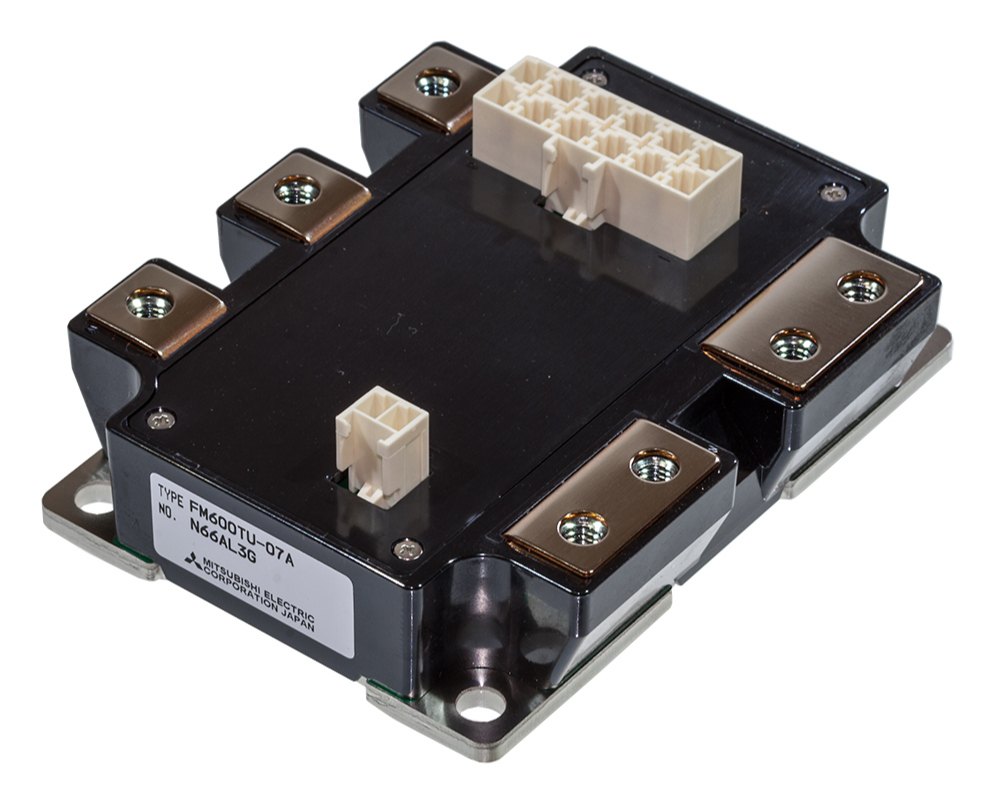

Mitsubishi Electric FM600TU-07A Power MOSFET Transistor High Power Switching Use FM600TU07A

Description:

The Mitsubishi Electric FM600TU‑07A is a high‑power MOSFET transistor designed for use in industrial power switching and high‑speed switching applications. Commonly installed in motor drives, inverters, power supplies, and other high‑power electronic systems, it enables efficient switching performance and reliable power handling. Maintenance teams, system integrators, and OEMs use this transistor for replacements, upgrades, and custom power electronics designs where robust, high‑current switching capability is essential.

Applications:

This Mitsubishi MOSFET transistor is used in industrial and power electronics systems requiring high‑current and high‑frequency switching performance. Typical applications include DC‑DC converters, motor drive inverters, UPS systems, welding machines, power amplifiers, and renewable energy inverters, where efficient power switching, low conduction losses, and thermal stability are critical for system performance and reliability.

Technical Specifications:

• Manufacturer Part Number (MPN): FM600TU‑07A
• Product Type: High‑Power MOSFET Transistor
• MOSFET Type: N‑channel (assumed from designation)
• Drain‑Source Voltage (Vds): Typically 700 V class (model family)
• Continuous Drain Current (Id): High current rating (600 A class)
• RDS(on): Low on‑resistance for reduced conduction loss
• Package Type: Power module (TO‑247/TO‑263 class or industrial module)
• Gate Threshold Voltage: Standard logic‑level gate
• Switching Speed: Fast switching capability
• Thermal Resistance: Low thermal resistance for high‑power operation
• Operating Temperature: –40°C to 150°C (junction)
• Storage Temperature: –55°C to 175°C
• Mounting Type: Heat‑sink mountable power package
• Protection Features: Overcurrent/overtemperature (application dependent)

Common Replacements:

• Mitsubishi FM600TU‑07N (alternate high‑power MOSFET)
• Infineon IPP60R070P7 (600 V, 70 mΩ MOSFET)
• STMicroelectronics STW60NM70ND (600 V, 70 mΩ MOSFET)
