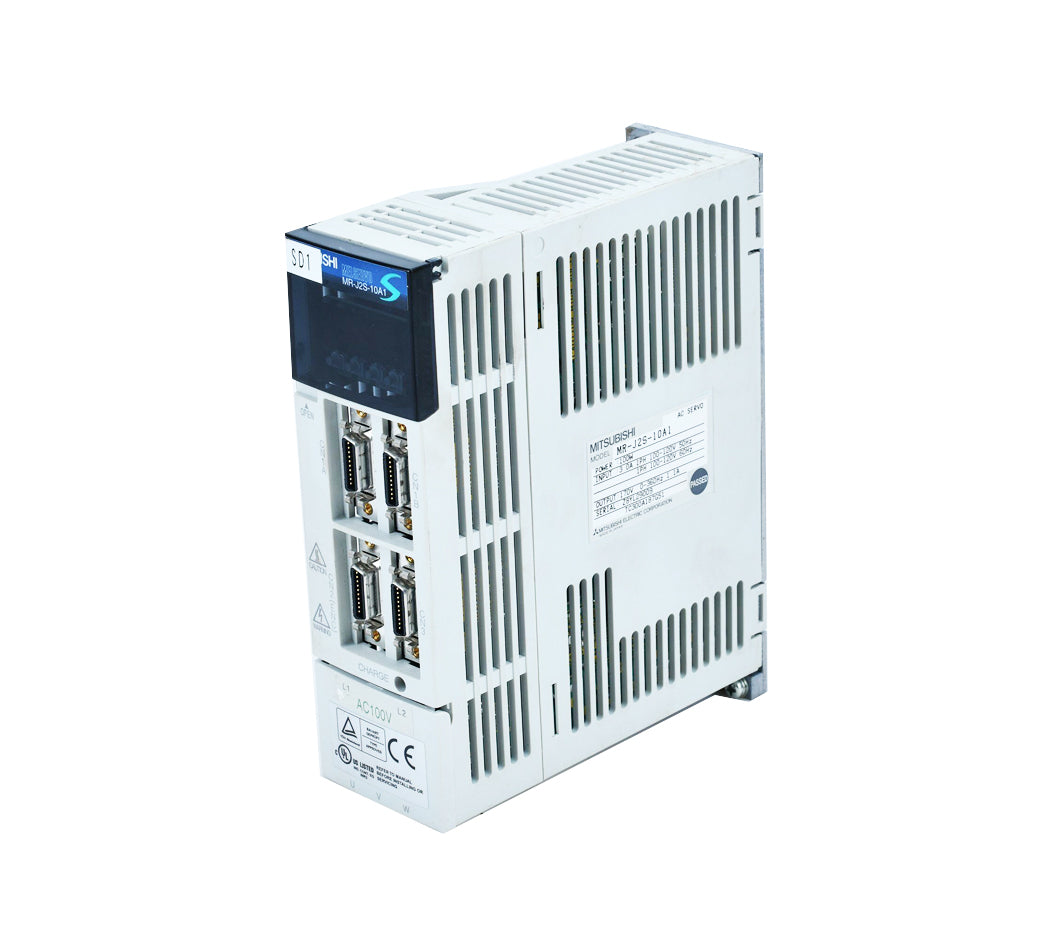

Mitsubishi Electric MR-J2S-10A1 Servo MOTOR DRIVE AMP 100W 100V MRJ2S10A1

Description:

The Mitsubishi Electric MR‑J2S‑10A1 is an AC servo motor drive amplifier used to control and power low‑power AC servo motors in industrial automation systems. Commonly installed in CNC machines, small robotics, automated assembly equipment, and precision motion control systems, it delivers accurate speed, torque, and position control for compact motion applications. Maintenance teams, system integrators, and OEMs use this servo drive for system upgrades, replacements, and new automation designs where reliable, responsive motor control is required.

Applications:

This Mitsubishi AC servo drive amplifier is used in industrial motion control applications that require precise and responsive control of low‑power servo motors. Typical uses include small CNC machining centers, compact robotic arms, pick‑and‑place equipment, packaging machinery, and light automated production lines where accurate positioning, smooth acceleration/deceleration, and consistent motion dynamics are essential for operational efficiency and product quality.

Technical Specifications:

• Manufacturer Part Number (MPN): MR‑J2S‑10A1
• Product Type: AC Servo Motor Drive Amplifier
• Output Power: Approx. 100 W
• Rated Output Current: Approx. 1.0 A
• Compatible Servo Motors: Mitsubishi low‑power AC servo series
• Control Method: Pulse train input with closed‑loop encoder feedback
• Power Supply: 100 V AC, 3‑phase
• Frequency: 50/60 Hz
• Protection Features: Overcurrent, overvoltage, overheat, short‑circuit protection
• Cooling Method: Built‑in fan
• Mounting Type: Panel mount
• Operating Temperature: 0°C to 50°C
• Storage Temperature: ‑20°C to 65°C
• Communication Interface: Pulse/Direction, optional fieldbus modules
• Status Indicators: LED run/alarm

Common Replacements:

• Mitsubishi MR‑J2S‑10A
• Yaskawa SGDV‑R90A01A (low‑power servo drive)
• Panasonic MINAS A5 Servo Drive 100 W
