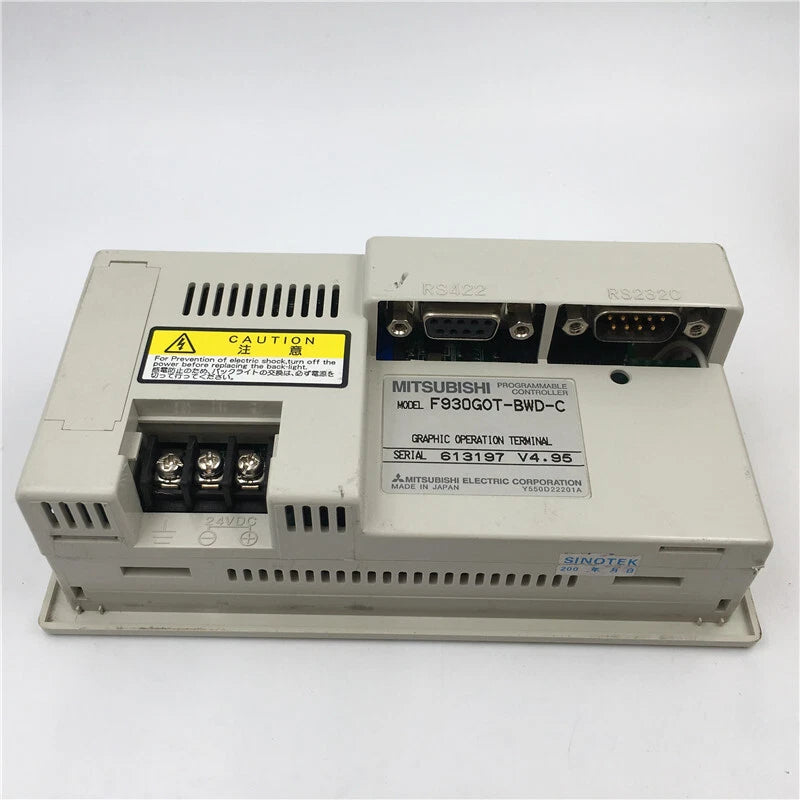

Mitsubishi F930GOT-BWD-C F930GOT-BWD-T F930GOT-BWD Programmable Logic Controller

Description:

The Mitsubishi F930GOT-BWD (including variants F930GOT-BWD-C and F930GOT-BWD-T) is a graphic operation terminal (GOT) from the F900 series, designed to provide a human-machine interface (HMI) for PLC-based automation systems. It allows operators to monitor, control, and interact with industrial processes through a compact display and keypad/touch interface. Commonly installed in control panels and machinery, it is used for system visualization, parameter control, and operator interaction in legacy automation systems.

Applications:

This Mitsubishi HMI is used in industrial automation systems requiring operator interface and system visualization. Typical applications include machine control panels, packaging systems, CNC equipment, and production lines where real-time monitoring, user input, and system control are critical to operational efficiency and safety.

Technical Specifications:

• Manufacturer Part Number (MPN): F930GOT-BWD / F930GOT-BWD-C / F930GOT-BWD-T
• Product Type: Human Machine Interface (HMI) / Graphic Operation Terminal
• Series: GOT-F900
• Display Size: Approx. 4.4 inches
• Display Type: STN monochrome LCD (blue/white)
• Resolution: 240 × 80 pixels
• Input Method: Membrane keys / touch keys (model dependent)
• Power Supply: 24 VDC (±10–15%)
• Current Consumption: ~200 mA @ 24 VDC
• Memory: Approx. 256 KB flash (screen data)
• Screen Capacity: Up to ~500 screens
• Communication: PLC connection via dedicated interface cables (FX, A, Q series)
• Mounting Type: Panel mount
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Weight: ~0.37 kg
• Status: Discontinued (GOT-F900 series phased out)

Common Replacements:

• Mitsubishi GT1030-HWDW (GOT1000 series replacement)
• Mitsubishi GT2104 / GT2107 (GOT2000 compact HMIs)
• Mitsubishi GS2107-WTBD (modern GOT Simple series)
